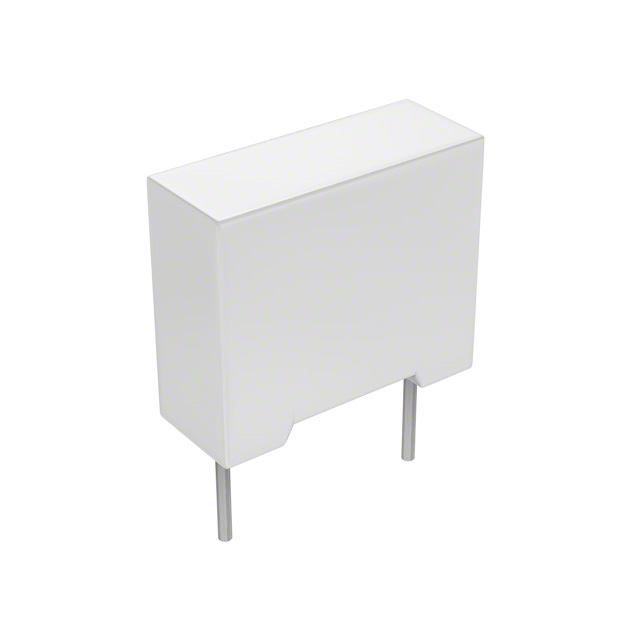

171103J630D-F
Or copy the link below:
- Mfr.Part #
- 171103J630D-F
- Manufacturer
- Cornell Dubilier Electronics
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 10000PF 5% 630VDC RAD
- Stock
- 34,527
- In Stock ：
- 34,527
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cornell Dubilier Electronics
- Product Category :
- Film Capacitors
- Size / Dimension :
- 0.512Lx0.197W 13.00mmx5.00mm
- Mounting Type :
- Through Hole
- Termination :
- PC Pins
- HTS Code :
- 8532.25.00.70
- Length :
- 13mm
- Lead Spacing :
- 0.394 10.00mm
- Pbfree Code :
- yes
- Lead Diameter :
- 600 µm
- Capacitance :
- 10000pF
- Size Code :
- 5120
- Dielectric :
- PP
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Package / Case :
- Radial
- Operating Temperature :
- -55°C~105°C
- Terminal Pitch :
- 10mm
- Applications :
- High Pulse, DV/DT
- Voltage - Rated AC :
- 250V
- Number of Terminations :
- 2
- Height Seated (Max) :
- 0.433 11.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Additional Feature :
- RATED AC VOLTAGE (V): 250
- Tolerance :
- ±5%
- Lead Pitch :
- 10.0076mm
- Published :
- 2013
- Series :
- 171
- Terminal Shape :
- Wire
- Voltage - Rated DC :
- 630V
- Height :
- 11mm
- Factory Lead Time :
- 20 Weeks
- Terminal Finish :
- Tin (Sn)
- Packaging :
- Bulk
- Dielectric Material :
- Polypropylene (PP), Metallized
- Width :
- 5mm
- RoHS Status :
- ROHS3 Compliant
- Type :
- GENERAL PURPOSE
- Mount :
- Through Hole
- Datasheets
- 171103J630D-F
171 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole
171103J630D-F Overview
0.394 10.00mm is the lead spacing of this electrical device.It is capable of operating at -55°C~105°C degrees Celsius.
171103J630D-F Features
171103J630D-F Applications
There are a lot of Cornell Dubilier Electronics (CDE)
171103J630D-F applications of film capacitors.
- Bypassing
- RFI for automotive
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
