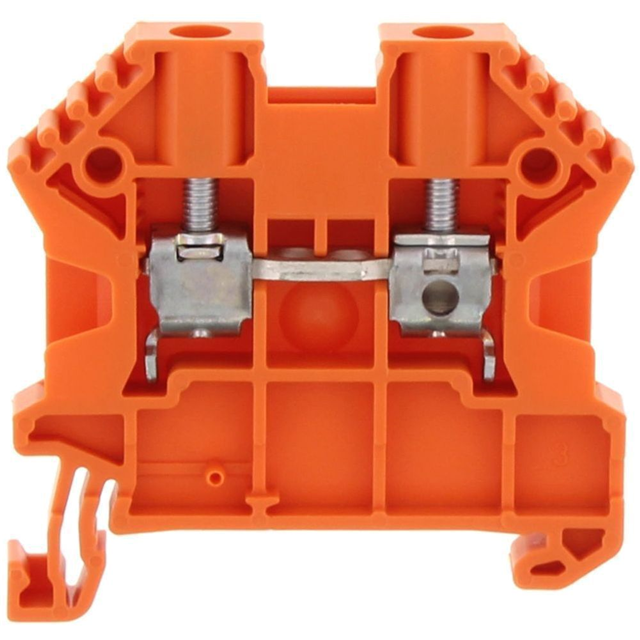

17104.3

Manufacturer :

Conta-Clip

Product Category :

Din Rail, Channel

Factory Lead Time :

12 Weeks

Termination :

Screwless

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Pitch :

0.200 5.08mm

MIL Conformance :

No

Approval Agency :

CSA, UR

Termination Style :

Screwless - Spring Cage, Tension Clamp

Operating Temperature :

-50°C~100°C

Housing Material :

Polybutylene Terephthalate (PBT)

DIN Conformance :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Plug Wire Entry :

180°

Wire Gauge (Min) :

12 AWG

Voltage - Rated :

300V

Published :

2008

Current - UL :

15A

JESD-609 Code :

e3

Pbfree Code :

yes

Voltage :

300V

Mounting Type :

Free Hanging (In-Line)

Contact Material :

COPPER ALLOY

Length :

124mm

Lead Free :

Lead Free

Number of Rows :

1

Current :

10A

Flammability Rating :

UL94 V-0

Mount :

Cable, Free Hanging

Voltage - IEC :

400V

IEC Conformance :

No

Contact Mating Finish :

Tin

Height :

15.2mm

Wire Gauge or Range - mm² :

0.2-2.5mm2

Filter Feature :

No

Type :

Plug, Male Pins

Width :

25.1mm

Insulation Height :

0.598 15.19mm

Wire Gauge (Max) :

26 AWG

Number of Positions Per Level :

24

Current Rating :

23A

Stripping Length :

10mm

Series :

Omnimate SL

Total Number of Contacts :

24

Packaging :

Bulk

Wire Gauge or Range - AWG :

12-26 AWG

RoHS Status :

RoHS Compliant

Number of Levels :

1

Color :

Orange

Radiation Hardening :

No

Orientation :

Straight
