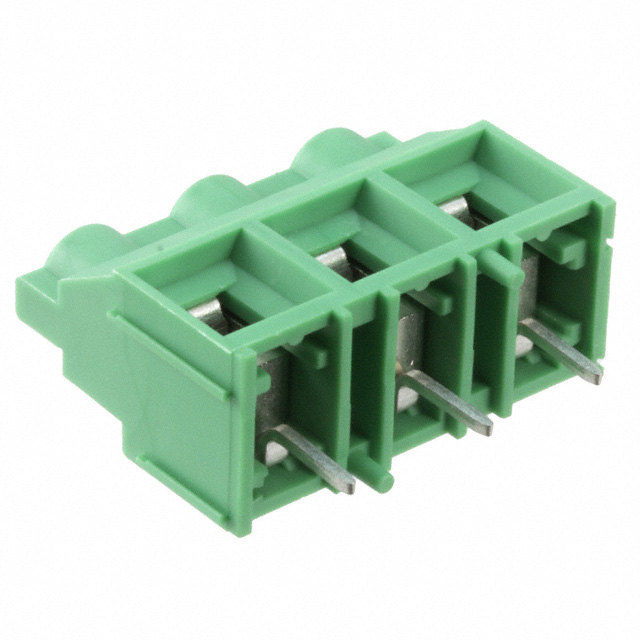

1710069
Or copy the link below:
- Mfr.Part #
- 1710069
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 9.53MM PCB
- Stock
- 298
- In Stock ：
- 298
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Wire to Board
- Max Supply Voltage :
- 690V
- Gender :
- Male
- Approval Agency :
- cULus
- Lead Free :
- Lead Free
- Connector Type :
- Screw
- Packaging :
- Bulk
- Current :
- 30A
- Wire Gauge :
- 10-30 AWG
- RoHS Status :
- RoHS Compliant
- Weight :
- 9.629993g
- Material :
- Polyamide
- Width :
- 28.56mm
- Feature :
- Interlocking (Side)
- Pitch :
- 0.375 9.53mm
- Torque - Screw :
- 0.5 Nm (4.4 Lb-In)
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Number of Levels :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA), Nylon
- Max Current Rating :
- 32A
- Length :
- 28.56mm
- Mount :
- Through Hole
- Series :
- COMBICON MKDSV
- Mating Orientation :
- Horizontal with Board
- Pbfree Code :
- yes
- Voltage - Rated :
- 690V
- Factory Lead Time :
- 7 Weeks
- Number of Decks :
- 1
- Depth :
- 12.5mm
- Screw Thread :
- M3
- Voltage :
- 600V
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 30 AWG
- Reach Compliance Code :
- Unknown
- Current Rating :
- 32A
- Wire Gauge (Min) :
- 10 AWG
- Wire Termination :
- Screw - Rising Cage Clamp
- Height :
- 26.5mm
- Color :
- Green
- Number of Positions :
- 3
- Mounting Type :
- Through Hole
- Contact Material :
- Tin
- Number of Ways :
- 3
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Published :
- 2012
- Stripping Length :
- 8mm
- Datasheets
- 1710069
1710069 Documents
0.375 9.53mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG COMBICON MKDSV
1710069 Overview
Currently, it is packaged in Screw.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MKDSV Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.This chip should not be supplied with voltages greater than zero.
1710069 Features
COMBICON MKDSV series
1710069 Applications
There are a lot of Phoenix Contact
1710069 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
