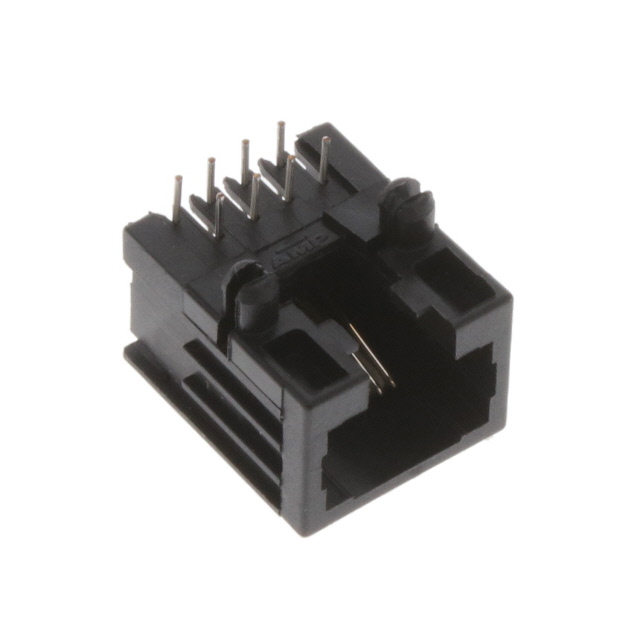

1705951-1
Or copy the link below:
- Mfr.Part #
- 1705951-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A UNSHLD
- Stock
- 6,000
- In Stock ：
- 6,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Number of Ports :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Current Rating :
- 1.5A
- Number of Positions Loaded :
- 8
- Number of Rows :
- 1
- Contact Finish Thickness :
- 6.00μin 0.152μm
- PCB Thickness :
- 1.6mm
- Packaging :
- Tape and Reel (TR)
- Depth :
- 18.1mm
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Circuit Application :
- Signal
- PCB Mounting Orientation :
- RIGHT ANGLE
- Keyed :
- No
- Height :
- 11.5mm
- Contact Plating :
- Gold, Nickel
- Mounting Type :
- Through Hole
- Feature :
- Board Lock
- Radiation Hardening :
- No
- Housing Color :
- Black
- Length - Tail :
- 3mm
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Factory Lead Time :
- 11 Weeks
- Ratings :
- Cat3
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Published :
- 2011
- Connector Type :
- JACK
- Color :
- Black
- Contact Finish Thickness - Mating :
- 360 nm
- Shielding :
- Unshielded
- Number of Contacts :
- 8
- Pitch :
- 2.54mm
- Element Configuration :
- Single
- Termination :
- Solder
- Length :
- 15.2mm
- Contact Material :
- Phosphor Bronze
- ELV :
- Compliant
- Number of Positions :
- 8
- Direction :
- Down
- LED Color :
- Does Not Contain LED
- Lead Free :
- Lead Free
- Tab Direction :
- Down
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- 90° Angle (Right)
- Datasheets
- 1705951-1
Jack Tape & Reel (TR) Unshielded 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole
1705951-1 Overview
The packaging contains Jack.This device is mounted in the Through Hole position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.The device has 1 ports that can be used to manage a variety of tasks.There are a number of advantages to its Board Lock feature.
1705951-1 Features
1705951-1 Applications
There are a lot of TE Connectivity AMP Connectors
1705951-1 Modular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
