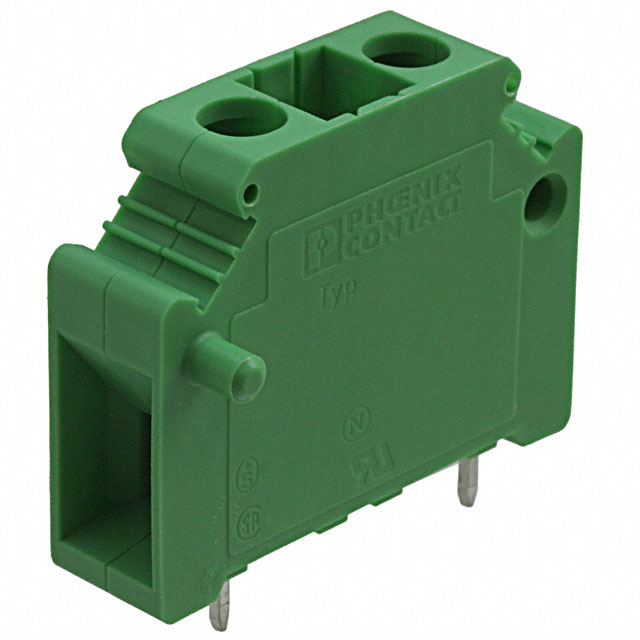

1704020
Or copy the link below:
- Mfr.Part #
- 1704020
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 1POS SIDE ENTRY PCB
- Stock
- 12,800
- In Stock ：
- 12,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Wire to Board
- Lead Free :
- Lead Free
- Wire Gauge (Max) :
- 24 AWG
- Factory Lead Time :
- 4 Weeks
- Screw Thread :
- M4
- Pitch :
- 10mm
- Voltage - Rated :
- 250V
- Current Rating :
- 57A
- Number of Ways :
- 1
- Wire Gauge (Min) :
- 6 AWG
- Length :
- 36.8mm
- ECCN Code :
- EAR99
- HTS Code :
- 8536.90.40.00
- Mounting Type :
- Through Hole
- Current :
- 65A
- Series :
- COMBICON KDS
- Color :
- Green
- Wire Gauge :
- 6-24 AWG
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Width :
- 36.8mm
- Additional Feature :
- PA, UL 94V-0, SAFETY APPROVAL: GL; RS; UL
- Published :
- 2011
- Gender :
- FEMALE
- Max Current Rating :
- 76A
- Orientation :
- Straight
- Voltage :
- 600V
- Weight :
- 17.060006g
- Safety Approval :
- CCA; CSA; CUL; EAC; SEV
- Packaging :
- Bulk
- Mating Orientation :
- Horizontal with Board
- Height :
- 28.7mm
- Contact Material :
- Copper, Tin
- Number of Contacts :
- 1
- Feature :
- Feed Through, Interlocking (Side)
- Torque - Screw :
- 1.2-1.5 Nm (10.6-13.3 Lb-In)
- Termination :
- Screw
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Decks :
- 1
- Wire Termination :
- Screw - Rising Cage Clamp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Housing Material :
- Polyamide (PA), Nylon
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- Datasheets
- 1704020
10mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 6-24 AWG COMBICON KDS
1704020 Overview
The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON KDS Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, UL 94V-0, SAFETY APPROVAL: GL; RS; UL, to name a few.A number of features make the Feed Through, Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
1704020 Features
COMBICON KDS series
1704020 Applications
There are a lot of Phoenix Contact
1704020 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
