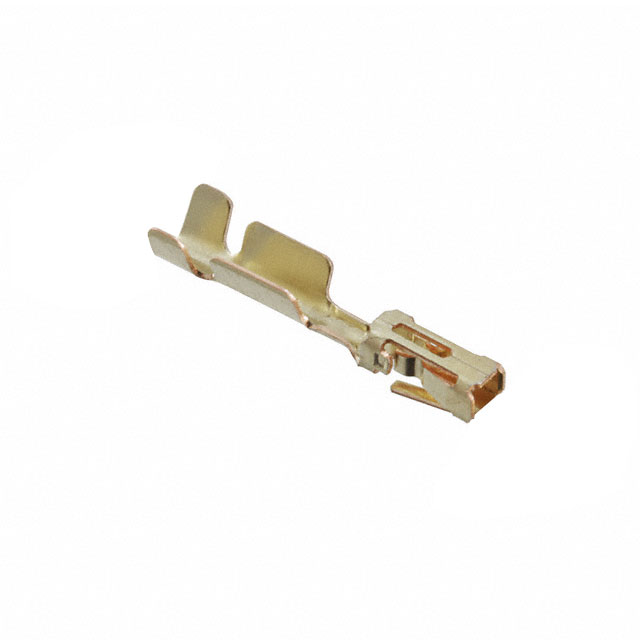

166309-2

Share

Or copy the link below:

Mfr.Part #
166309-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN SOCKET 20-26AWG CRIMP GOLD
Stock
9,536
In Stock :
9,536

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Contacts
Pbfree Code :
yes
Voltage - Rated AC :
250V
Wire Gauge (Max) :
26 AWG
Contact Finish :
Gold
Max Operating Temperature :
105°C
Shielding :
Unshielded
Factory Lead Time :
35 Weeks
Contact Current Rating :
3A
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Orientation :
Straight
Contact Resistance :
12mOhm
Contact Material :
Bronze
Contact Finish Thickness :
31.5μin 0.80μm
ECCN Code :
EAR99
Terminal and Terminal Block Type :
TAB TERMINAL
Lead Free :
Lead Free
Contact Gender :
FEMALE
Insulation Resistance :
5GOhm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Current Rating :
3A
Mount :
CABLE
Wire Gauge (Min) :
20 AWG
Wire Cross Section :
0.56 mm2
Contact Termination :
Crimp
Series :
AMPMODU MOD V
Wire/Cable Gauge :
24 AWG
Min Operating Temperature :
-65°C
Pin or Socket :
Socket
Radiation Hardening :
No
Wire/Cable Type :
Discrete
HTS Code :
8536.90.40.00
Insulation Diameter :
1.4 mm
ELV :
Compliant
Operating Supply Voltage :
250V
RoHS Status :
RoHS Compliant
Wire Gauge :
20-26 AWG
Approval Agency :
CSA
Published :
2007
Packaging :
Tape and Reel (TR)
Datasheets
166309-2
Introducing Rectangular Connector Contacts TE Connectivity AMP Connectors 166309-2 from Chip IC,where excellence meets affordability. This product stands out with its 166309-2 pinout, 166309-2 datasheet PDF, 166309-2 amp .Beyond Rectangular Connector Contacts TE Connectivity AMP Connectors 166309-2 ,we also offer 4281F2428-99, SWT25X-URTC-S01-UU-UU, SHF-001T-0.8BS, Our vast inventory has you covered. Contact us now for immediate solutions.
