1646090000

Share

Or copy the link below:

Mfr.Part #
1646090000
Manufacturer
Weidmuller
Package / Case
Datasheet
Download
Description
TERM BLOCK HDR 8POS 90DEG 5.08MM
Stock
12,984
In Stock :
12,984

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Weidmuller
Product Category :
Headers, Plugs and Sockets
Operating Temperature :
-20°C~100°C
Pitch :
0.200 5.08mm
Number of Levels :
1
Moisture Sensitivity Level (MSL) :
Not Applicable
Gender :
FEMALE
Voltage - IEC :
250V
IEC Conformance :
No
Option :
GENERAL PURPOSE
Mount :
Through Hole
Packaging :
Bulk
Type :
Header, Female Sockets
Depth :
20.25mm
Voltage :
300V
Total Number of Contacts :
8
Insulation Resistance :
1MOhm
Insulation Height :
0.406 10.31mm
Color :
Black
Material Flammability Rating :
UL94 V-0
Flammability Rating :
UL94 V-0
Orientation :
RIGHT ANGLE
Termination Style :
Solder
DIN Conformance :
No
Housing Material :
Polybutylene Terephthalate (PBT)
Series :
Omnimate BL
Max Current Rating :
15A
Header Orientation :
90°, Right Angle
Published :
2006
Factory Lead Time :
3 Weeks
UL Flammability Code :
94V-0
Additional Feature :
STAGGERED CONFIGURATION
Number of Rows :
1
Contact Mating Finish :
Tin
Mixed Contacts :
No
Filter Feature :
No
Contact Tail Length :
0.177 4.50mm
Mounting Type :
Through Hole
Current Rating :
15A
Current :
15A
Radiation Hardening :
No
Pbfree Code :
yes
MIL Conformance :
No
Width :
20.3mm
RoHS Status :
RoHS Compliant
Contact Material :
COPPER ALLOY
Number of Positions Per Level :
8
Feature :
Retention Latches
Current - IEC :
12A
Lead Free :
Lead Free
Datasheets
1646090000
Introducing Headers, Plugs and Sockets Weidmuller 1646090000 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-20°C~100°C, Type:Header, Female Sockets, Voltage:300V, Mounting Type:Through Hole, 1646090000 pinout, 1646090000 datasheet PDF, 1646090000 amp .Beyond Headers, Plugs and Sockets Weidmuller 1646090000 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

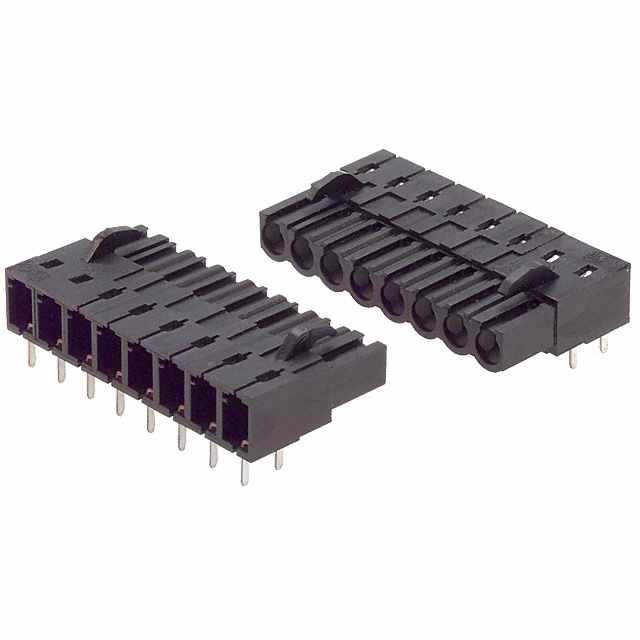

Weidmuller 1646090000


Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

1646090000 Overview


The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Omnimate BL Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STAGGERED CONFIGURATION, to name a few.A number of features make the Retention Latches feature more powerful.Through Hole represents the mounting point for the part.-20°C~100°C Operating Temperature is the default operating temperature for the device.As with other Header, Female Sockets products, this part also offers a wide range of benefits.

1646090000 Features


Omnimate BL series


1646090000 Applications


There are a lot of Weidmüller
1646090000 Terminal Blocks applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control
