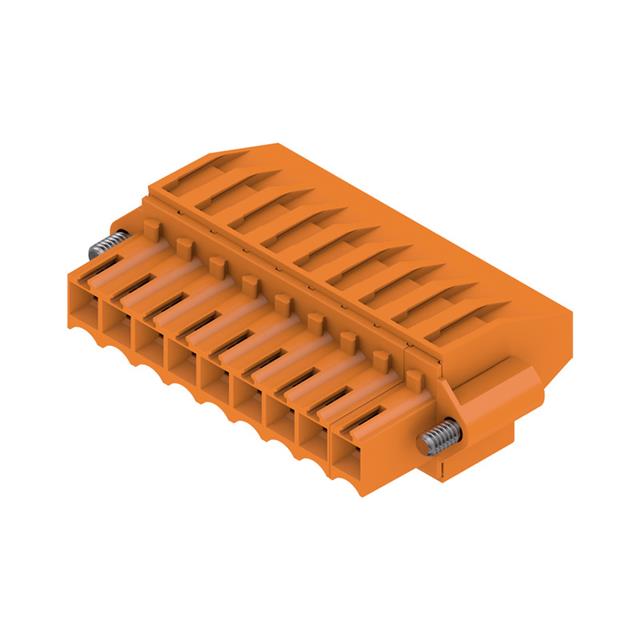

1640000000
- Mfr.Part #
- 1640000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 9POS 3.5MM
- Stock
- 9,587
- In Stock :
- 9,587
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Radiation Hardening :
- No
- Insulation Height :
- 0.888 22.56mm
- Type :
- Plug, Female Sockets
- Stripping Length :
- 6mm
- Current :
- 8A
- Voltage :
- 300V
- Mount :
- Free Hanging, Panel
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- DIN Conformance :
- No
- IEC Conformance :
- No
- Current - IEC :
- 12A
- Factory Lead Time :
- 12 Weeks
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Approval Agency :
- CSA
- Pitch :
- 0.138 3.50mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Voltage - Rated :
- 300V
- Color :
- Orange
- Depth :
- 12mm
- Torque - Screw :
- 0.2-0.25 Nm (1.7-2.2 Lb-In)
- Feature :
- Mating Flange
- Lead Free :
- Lead Free
- Flammability Rating :
- UL94 V-0
- Termination :
- Screw
- Max Current Rating :
- 8A
- Width :
- 35mm
- Ingress Protection :
- IP20
- Pbfree Code :
- yes
- Voltage - IEC :
- 320V
- Plug Wire Entry :
- 270°
- Contact Material :
- COPPER ALLOY
- Published :
- 2009
- Number of Levels :
- 1
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Additional Feature :
- High Density
- Length :
- 38.5mm
- Series :
- Omnimate BL
- Number of Positions Per Level :
- 9
- Current Rating :
- 12A
- MIL Conformance :
- No
- Wire Gauge or Range - mm² :
- 0.2-1.5mm2
- Max Supply Voltage :
- 300V
- Orientation :
- Straight
- Total Number of Contacts :
- 9
- Contact Mating Finish :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Screw Size :
- M2
- Wire Gauge (Min) :
- 14 AWG
- Number of Rows :
- 1
- Packaging :
- Bulk
- Operating Temperature :
- -50°C~100°C
- Wire Gauge or Range - AWG :
- 14-28 AWG
- Wire Gauge (Max) :
- 28 AWG
- JESD-609 Code :
- e3
- Datasheets
- 1640000000

Bulk 0.138 3.50mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy
1640000000 Overview
It's mounted Free Hanging (In-Line).We use a Bulk case to package the product.It's from the Omnimate BL Series.There are also other features like HIGH DENSITY, to name a few.In many ways, its Mating Flange feature makes it more powerful.It's mounted by Free Hanging, Panel.-50°C~100°C Operating Temperature is what the device runs at.There should be no more than 300V voltage supplied to this chip.The benefts of this part are similar to those of other Plug, Female Sockets products.
1640000000 Features
Omnimate BL series
1640000000 Applications
There are a lot of Weidmüller
1640000000 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
