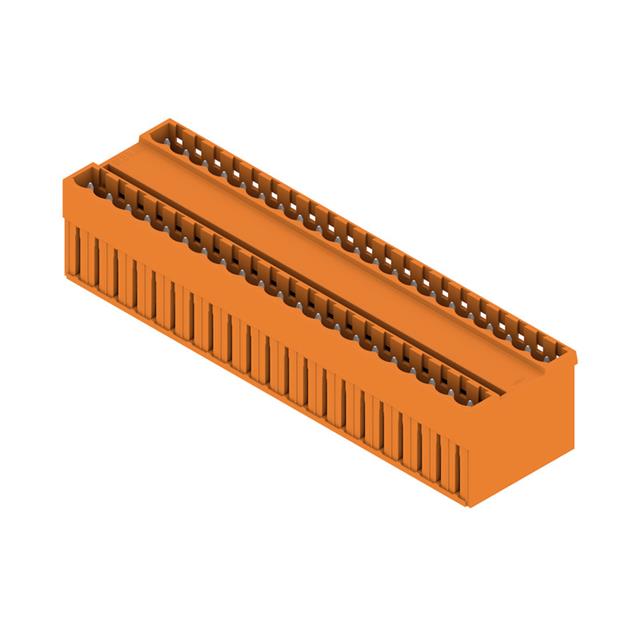

1615000000
Or copy the link below:
- Mfr.Part #
- 1615000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 42POS VERT 5MM
- Stock
- 9,059
- In Stock ：
- 9,059
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Series :
- Omnimate SL
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Insulation Resistance :
- 1MOhm
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- COPPER ALLOY
- Length :
- 107mm
- Mixed Contacts :
- No
- Number of Poles :
- 42
- Color :
- Orange
- Hole Diameter :
- 1.3 mm
- Filter Feature :
- No
- Voltage - IEC :
- 400V
- Pitch :
- 0.197 5.00mm
- Current :
- 10A
- Header Orientation :
- Vertical
- Mount :
- Through Hole
- Contact Mating Finish :
- Tin
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Solder
- Height :
- 22mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Lead Free :
- Lead Free
- Contact Tail Length :
- 0.126 3.20mm
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- UL Flammability Code :
- 94V-0
- Operating Temperature :
- -50°C~100°C
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- IEC Conformance :
- No
- Total Number of Contacts :
- 42
- Insulation Height :
- 0.866 22.00mm
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 11A
- Voltage - Rated :
- 300V
- Approval Agency :
- CSA, UR
- Voltage :
- 300V
- Published :
- 2008
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Rows :
- 2
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Number of Levels :
- 2
- Current - IEC :
- 11A
- Width :
- 28.5mm
- Positions Per Level :
- 21
- Datasheets
- 1615000000
Bulk 0.197 5.00mm Orange 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polybutylene Terephthalate (PBT) Tin Copper Alloy
1615000000 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SL Series.It is mounted by Through Hole.It operates at an operating temperature of -50°C~100°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
1615000000 Features
Omnimate SL series
1615000000 Applications
There are a lot of Weidmüller
1615000000 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
