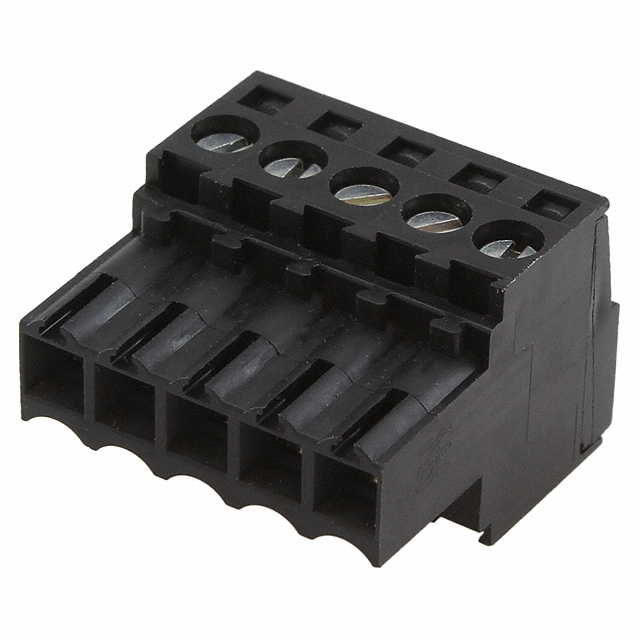

1614090000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

14-28 AWG

Series :

Omnimate BL

Current Rating :

14.5A

Mounting Type :

Free Hanging (In-Line)

Termination :

Screw

RoHS Status :

RoHS Compliant

Max Current Rating :

10A

Housing Material :

Polybutylene Terephthalate (PBT)

Wire Gauge or Range - mm² :

0.2-1.5mm2

Number of Positions Per Level :

5

Additional Feature :

High Density

Plug Wire Entry :

180°

Contact Mating Finish :

Tin

Width :

7.5mm

Mixed Contacts :

No

Torque - Screw :

0.2-0.25 Nm (1.7-2.2 Lb-In)

Screw Size :

M2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.138 3.50mm

Length :

17.5mm

Voltage :

300V

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Approval Agency :

CSA, UR

Ingress Protection :

IP20

JESD-609 Code :

e3

Total Number of Contacts :

5

Orientation :

RIGHT ANGLE

Wire Gauge (Max) :

28 AWG

Filter Feature :

No

Radiation Hardening :

No

Factory Lead Time :

16 Weeks

DIN Conformance :

No

Mount :

Cable, Free Hanging

Packaging :

Bulk

Color :

Black

Current :

10A

Published :

2009

REACH SVHC :

Unknown

Lead Free :

Lead Free

Insulation Height :

0.512 13.00mm

Connector Type :

Terminal Block

Number of Levels :

1

Option :

GENERAL PURPOSE

Type :

Plug, Female Sockets

Voltage - Rated :

300V

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Stripping Length :

6mm

Max Supply Voltage :

300V

Depth :

18.5mm

Number of Rows :

1

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Operating Temperature :

-50°C~100°C

Contact Material :

COPPER ALLOY

Voltage - IEC :

320V

Wire Gauge (Min) :

14 AWG

Wire/Cable Gauge :

28 AWG

Current - IEC :

17A

IEC Conformance :

No
