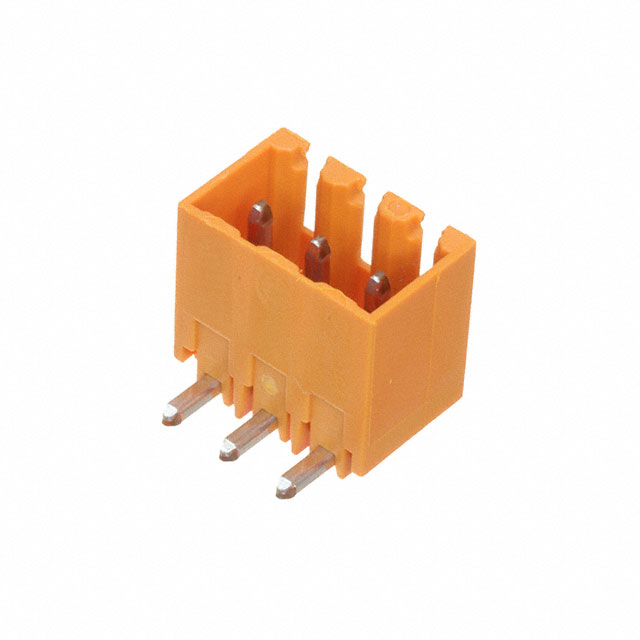

1605080000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Color :

Orange

DIN Conformance :

No

Current - IEC :

17A

UL Flammability Code :

94V-0

Lead Free :

Lead Free

Width :

11.1mm

Current :

10A

Factory Lead Time :

8 Weeks

Insulation Height :

0.298 7.57mm

Series :

Omnimate SL

Mount :

Through Hole

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Approval Agency :

CSA, UR

Orientation :

RIGHT ANGLE

Mixed Contacts :

No

Filter Feature :

No

Flammability Rating :

UL94 V-0

Voltage - IEC :

320V

Packaging :

Bulk

Termination Style :

Solder

Contact Material :

COPPER ALLOY

Depth :

11.1mm

Insulation Resistance :

1MOhm

Hole Diameter :

1.3 mm

Radiation Hardening :

No

Number of Rows :

1

Mounting Type :

Through Hole

Voltage - Rated :

300V

Contact Tail Length :

0.126 3.20mm

Header Orientation :

90°, Right Angle

Current Rating :

14.5A

Number of Levels :

1

Number of Poles :

3

Pitch :

0.138 3.50mm

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Contact Mating Finish :

Tin

Published :

1997

Pbfree Code :

yes

Type :

Header, Male Pins, Shrouded (4 Side)

Total Number of Contacts :

3

Operating Temperature :

-50°C~100°C

RoHS Status :

RoHS Compliant

Housing Material :

Polybutylene Terephthalate (PBT)

Max Current Rating :

10A

Voltage :

300V

Length :

11.9mm

MIL Conformance :

No

Ingress Protection :

IP10
