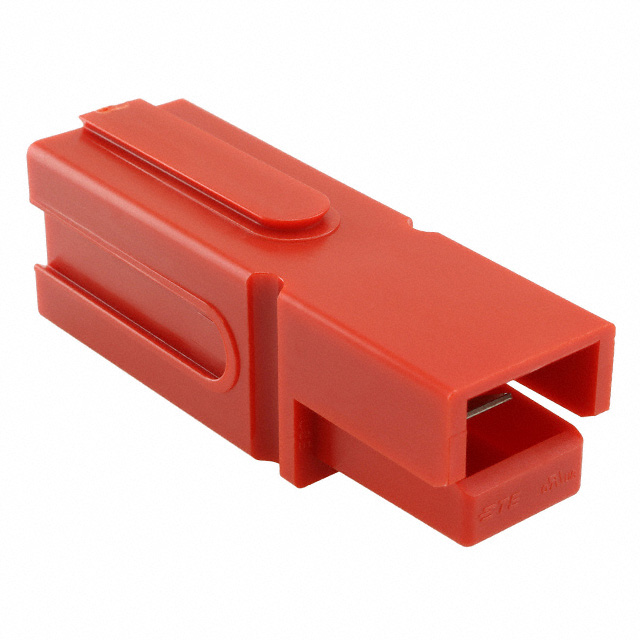

1604001-5

Share

Or copy the link below:

Mfr.Part #
1604001-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HOUSING 1POS RED
Stock
1,634
In Stock :
1,634

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Blade Type Power Connector Housings
Color :
Red
Connector Type :
Non-Gendered
Max Voltage Rating (AC) :
600V
Wire Gauge (Max) :
6 AWG
Max Operating Temperature :
105°C
Series :
Power Series 120
Published :
2006
Flammability Rating :
UL94 V-0
Current Rating :
120A
Number of Contacts :
1
Width :
22.4mm
Length :
22.4mm
Termination :
Crimp
Mounting Type :
Free Hanging (In-Line)
Voltage - Rated DC :
24V
Wire Gauge (Min) :
2 AWG
Operating Temperature :
-20°C~105°C
Factory Lead Time :
13 Weeks
Lead Free :
Not Applicable
RoHS Status :
RoHS Compliant
Orientation :
Straight
Note :
Contacts Not Included
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Packaging :
Bulk
Fastening Type :
Spring Retention
Sealable :
No
Contact Retention :
Without
Number of Signal Positions :
0
Depth :
69.6mm
Insulation Diameter :
15 mm
Feature :
Stackable
Height :
69.596mm
Operating Supply Voltage :
600V
Contact Type :
Non-Gendered
Number of Power Positions :
0
Mount :
Free Hanging
Contact Termination :
Crimp
Approval Agency :
UL
Min Operating Temperature :
-20°C
Contact Material :
Copper
Housing Color :
Red
Wire/Cable Gauge :
2 AWG
Voltage - Rated :
24V
Circuit Application :
Power
Number of Positions :
1
Wire/Cable Type :
Discrete
ELV :
Compliant
Material - Insulation :
Polycarbonate (PC)
Housing Material :
Polycarbonate
Number of Rows :
1
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Plating :
Silver
Datasheets
1604001-5
Introducing Blade Type Power Connector Housings TE Connectivity AMP Connectors 1604001-5 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-20°C~105°C, 1604001-5 pinout, 1604001-5 datasheet PDF, 1604001-5 amp .Beyond Blade Type Power Connector Housings TE Connectivity AMP Connectors 1604001-5 ,we also offer 992G1-BK, 992-BK, SBS75XBLK-BK, Our vast inventory has you covered. Contact us now for immediate solutions.
