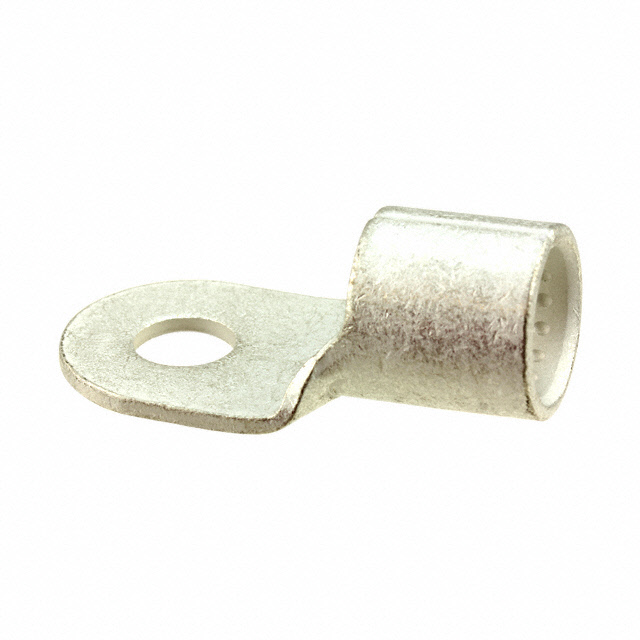

160003
Or copy the link below:
- Mfr.Part #
- 160003
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RING D-SHAPE 3/0AWG M10
- Stock
- 148
- In Stock ：
- 148
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- ELV :
- Compliant
- Package / Case :
- Metal
- Terminal Type :
- D-Shaped
- Wire Gauge :
- 3/0 AWG
- Wire Cross Section :
- 95 mm2
- Series :
- Solistrand
- Width - Outer Edges :
- 1.082 27.48mm
- Lead Free :
- Not Applicable
- Number of Holes :
- 1
- Diameter - Inside :
- 14.351 mm
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Brazed Seam
- Stud Diameter :
- 10.4902 mm
- Factory Lead Time :
- 20 Weeks
- HTS Code :
- 8536.90.40.00
- Stud Size :
- M10
- Contact Finish :
- Tin
- Heavy Duty :
- No
- Depth :
- 27.48mm
- Length :
- 54.43mm
- Contact Material :
- Copper
- Mounting Type :
- Free Hanging (In-Line)
- Pbfree Code :
- yes
- Termination :
- Crimp
- Packaging :
- Bulk
- Material Thickness :
- 2.3mm
- Length - Overall :
- 2.143 54.43mm
- Mount :
- Free Hanging
- REACH SVHC :
- No SVHC
- Tongue Thickness :
- 2.3mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Stud/Tab Size :
- M10 Stud
- RoHS Status :
- RoHS Compliant
- Thickness :
- 0.091 2.31mm
- Insulation :
- Non-Insulated
- Wire/Cable Gauge :
- 3 AWG
- Published :
- 2010
- Datasheets
- 160003
