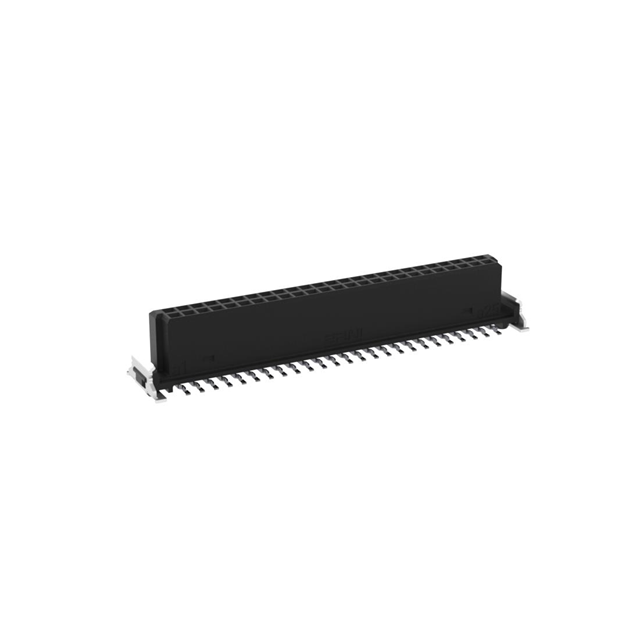

154807

Manufacturer :

TE Connectivity

Product Category :

Headers, Receptacles, Female Sockets

Termination Type :

Surface Mount

Reach Compliance Code :

Compliant

Durability :

500 Cycles

DIN Conformance :

No

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Number of Contact Rows :

2

Dielectric Withstanding Voltage :

500VAC V

HTS Code :

8536.69.40.40

Manufacturer :

ERNI

Contact Finish Termination :

Tin (Sn)

Filter Feature :

No

Pbfree Code :

yes

Number Of PCB Rows :

2

Mating Contact Pitch :

0.05 inch

Body Breadth :

0.275 inch

Body Orientation :

Straight

Insulation Resistance :

10000000000 Ω

ECCN Code :

EAR99

Contact Style :

SQ PIN-SKT

Total Number of Contacts :

50

Board Mounting Option :

PEG

Product Depth (mm) :

7.2(mm)

Product Height (mm) :

6.55(mm)

Insertion Force-Max :

.5004 N

Contact Pattern :

RECTANGULAR

Packaging :

Tape and Reel

Mixed Contacts :

No

Type :

Socket Strip

IEC Conformance :

No

Pitch (mm) :

1.27(mm)

Mounting Style :

Surface Mount

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

PCB Contact Row Spacing :

5.08 mm

Connector Type :

BOARD STACKING CONNECTOR

Polarization Key :

POLARIZED HOUSING

Gender :

F

Terminal Pitch :

1.27 mm

Mating Contact Row Spacing :

0.05 inch

Reliability :

COMMERCIAL

Number of Contacts :

50(POS)

Rated Current (Signal) :

1.1 A

Contact Plating :

Gold

JESD-609 Code :

e3

Additional Feature :

RoHS Compliant

Termination Method :

Solder

Reference Standard :

UL

Mounting Type :

BOARD

Plating Thickness :

4u inch

Contact Material :

NOT SPECIFIED

Subcategory :

Headers and Edge Type Connectors

Contact Resistance :

25 mΩ

Body Depth :

0.247 inch

Mounting Option 1 :

LOCKING

Product Length (mm) :

36.83(mm)
