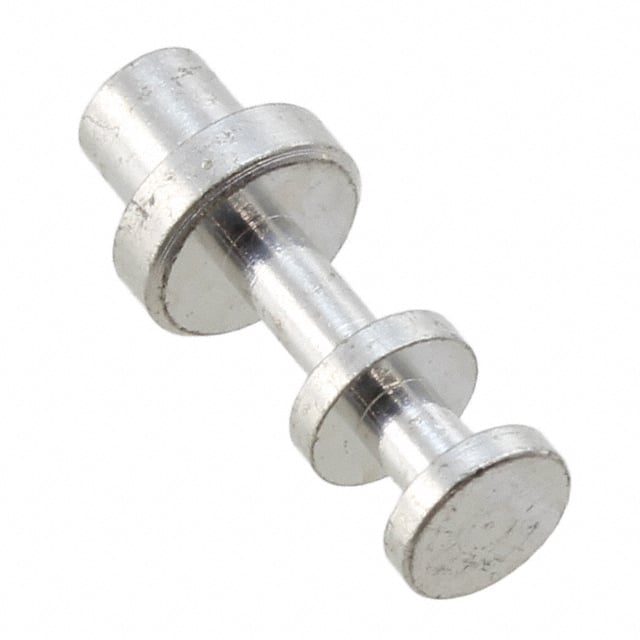

1503-2
Or copy the link below:
- Mfr.Part #
- 1503-2
- Manufacturer
- Keystone Electronics Corp.
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SINGLE L=9.14MM TIN
- Stock
- 6,068
- In Stock ：
- 6,068
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Keystone Electronics Corp.
- Product Category :
- Turret Connectors
- Mount :
- Through Hole
- Length :
- 11.9126mm
- Number of Terminations :
- 50
- Mounting Type :
- Through Hole
- Flange Diameter :
- 0.187 (4.75mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Length - Above Board :
- 0.360 9.14mm
- Material :
- Brass
- Diameter - Inside :
- 2.84 mm
- Mounting Hole Diameter :
- 0.116 (2.95mm)
- Factory Lead Time :
- 6 Weeks
- Pitch :
- 9.525mm
- Number of Turrets :
- Double
- RoHS Status :
- ROHS3 Compliant
- Length - Below Flange :
- 0.109 2.77mm
- Length - Overall :
- 0.469 11.90mm
- Staking Side OD :
- 0.112 (2.84mm)
- Hole Diameter :
- 3.048 mm
- Diameter :
- 2.84mm
- Contact Finish :
- Tin
- Number of Rows :
- 2
- Board Thickness :
- 0.062 1.57mm
- Contact Plating :
- Tin
- Width :
- 38.1mm
- Diameter - Turret Head :
- 0.145 (3.68mm)
- Insulation :
- Non-Insulated
- Contact Material :
- Brass
- Row Spacing :
- 25.4 mm
- Terminal Type :
- Single End
- Termination :
- Staking Flare
- Published :
- 2012
- Number of Positions :
- 50
- Datasheets
- 1503-2
