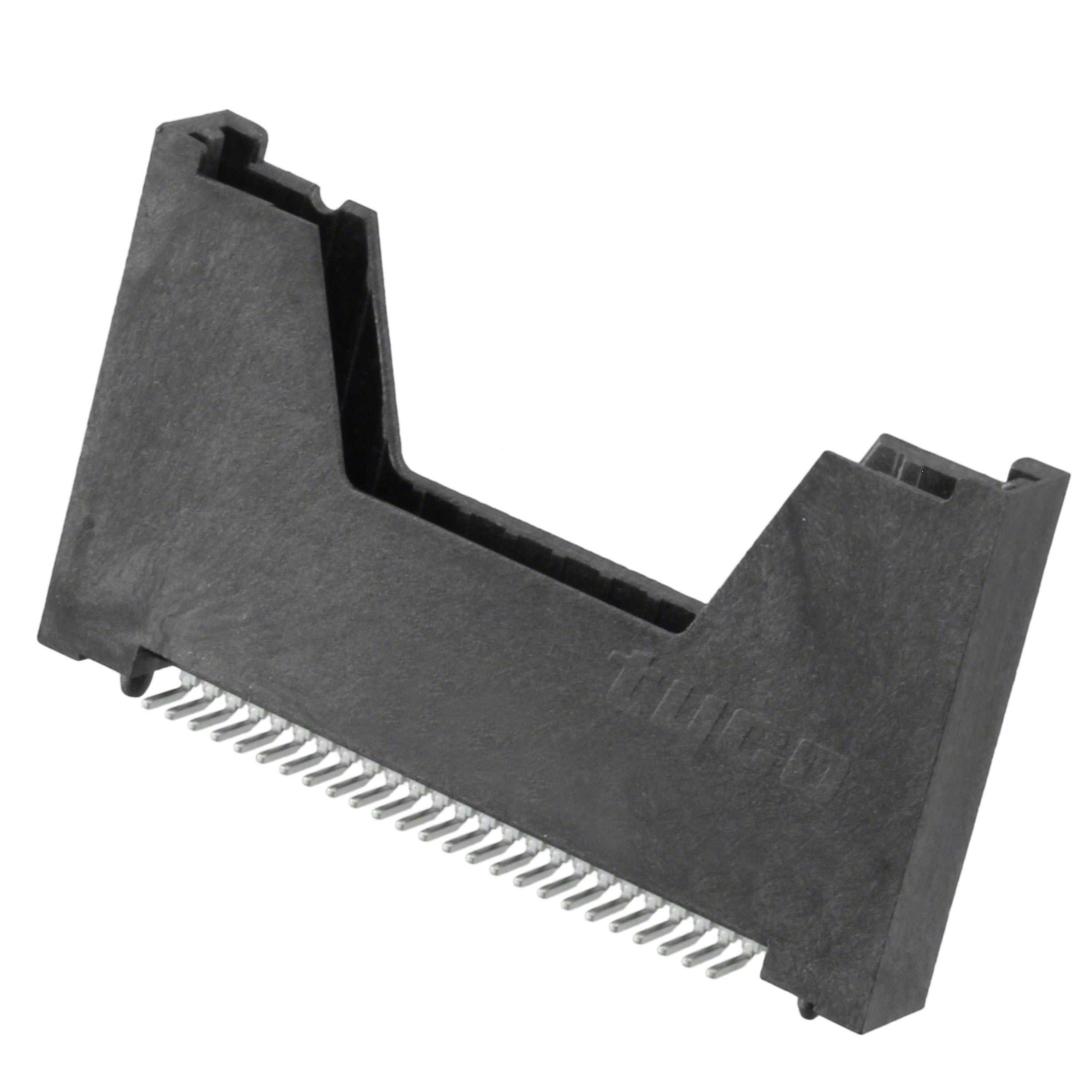

146540-2
Or copy the link below:
- Mfr.Part #
- 146540-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN COMPACT FLASH CARD
- Stock
- 37,565
- In Stock ：
- 37,565
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Card Sockets
- Color :
- Black
- Number of Positions :
- 50
- MIL Conformance :
- No
- Contact Current Rating :
- 500mA
- Reliability :
- COMMERCIAL
- Mount :
- Surface Mount
- Shielding :
- Unshielded
- Insulation Resistance :
- 1000000000Ohm
- Number Of PCB Rows :
- 2
- Lead Free :
- Lead Free
- Sealable :
- No
- Pitch :
- 1.27mm
- JESD-609 Code :
- e3
- Durability :
- 10000 Cycles
- Filter Feature :
- No
- RoHS Status :
- RoHS Compliant
- Length :
- 44.77mm
- Depth :
- 5.5mm
- Body/Shell Style :
- Receptacle
- PCB Contact Pattern :
- RECTANGULAR
- IEC Conformance :
- No
- Reference Standard :
- UL
- DIN Conformance :
- No
- Packaging :
- Tray
- Housing Material :
- Polymer
- Current Rating :
- 500mA
- Number of Conductors :
- ONE
- Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Feature :
- Board Guide
- Polarization Key :
- POLARIZED HOUSING
- Circuit Application :
- Signal
- Height Above Board :
- 0.512 13.00mm
- PCB Contact Row Spacing :
- 4.7498 mm
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Published :
- 2005
- Min Operating Temperature :
- -67°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Tin, Gold
- Contact Style :
- SQ PIN-SKT
- Insertion, Removal Method :
- Push In, Pull Out
- Mounting Feature :
- Normal, Standard - Top
- Contact Resistance :
- 40mOhm
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Surface Mount
- Contact Pattern :
- RECTANGULAR
- Underplate Material :
- Nickel
- Max Operating Temperature :
- 185°C
- Rated Current (Signal) :
- 0.8A
- Orientation :
- Straight
- Mixed Contacts :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Connector Type :
- Connector
- Contact Gender :
- Male
- Mating Contact Row Spacing :
- 0.05 inch
- Termination :
- Solder
- ELV :
- Compliant
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Contact Material :
- Brass
- Total Number of Contacts :
- 50
- Card Type :
- CompactFlash® - Type I
- Datasheets
- 146540-2
146540-2 datasheet pdf and Memory Connectors - PC Card Sockets product details from TE Connectivity AMP Connectors stock available at Xinshop
