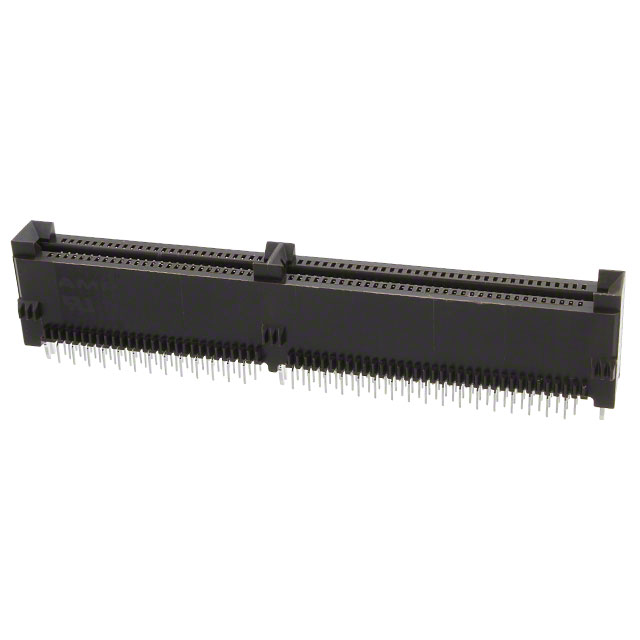

145427-5
Or copy the link below:
- Mfr.Part #
- 145427-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 240POS 0.050
- Stock
- 7,826
- In Stock ：
- 7,826
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- RoHS Status :
- Non-RoHS Compliant
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Conductors :
- ONE
- Operating Temperature (Max) :
- 85°C
- Packaging :
- Bulk
- Contact Plating :
- Gold
- Body Length or Diameter :
- 3.616 inch
- Mixed Contacts :
- No
- Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Orientation :
- Vertical
- Mount :
- Through Hole
- IEC Conformance :
- No
- Insertion Force-Max :
- 1.39 N
- Contact Material :
- Bronze
- PCB Contact Pattern :
- STAGGERED
- Number of Contacts :
- 240
- Radiation Hardening :
- No
- Gender :
- Receptacle
- MIL Conformance :
- No
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1000000000Ohm
- Circuit Application :
- Signal
- DIN Conformance :
- No
- Connector Type :
- CARD EDGE CONNECTOR
- Operating Temperature (Min) :
- -55°C
- Housing Color :
- Brown
- Pitch :
- 2.54mm
- JESD-609 Code :
- e0
- ECCN Code :
- EAR99
- Plating Thickness :
- 30μin
- Lead Length :
- 2.794mm
- Rated Current (Signal) :
- 1A
- Length - Termination :
- 0.09 inch
- Contact Resistance :
- 40mOhm
- Number Of PCB Rows :
- 8
- HTS Code :
- 8536.69.40.40
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Housing Material :
- Polyphenylene
- Number of Rows :
- 2
- Contact Style :
- BELLOWED TYPE
- Pbfree Code :
- No
- Body Breadth :
- 0.47 inch
- Body Depth :
- 0.715 inch
- Filter Feature :
- No
- Current Rating :
- 1A
- Option :
- GENERAL PURPOSE
- Datasheets
- 145427-5
Receptacle 2.54mm Bronze 2 Rows Bulk Solder
145427-5 Overview
Materials were packaged in accordance with Bulk's specifications.Devices are connected to the computer using the connector socket CARD EDGE CONNECTOR.
145427-5 Features
145427-5 Applications
There are a lot of TE Connectivity / AMP
145427-5 Edgeboard Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
