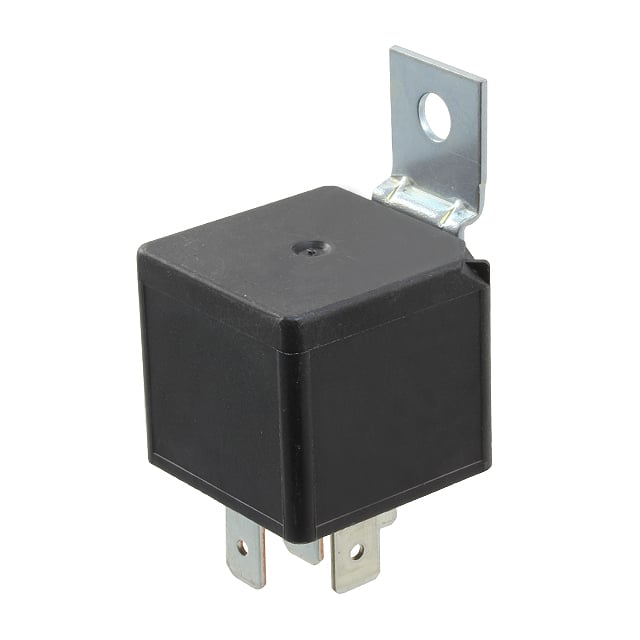

1432794-1
Or copy the link below:
- Mfr.Part #
- 1432794-1
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 30A 12V
- Stock
- 3,490
- In Stock ：
- 3,490
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Number of Poles :
- 1
- Coil Current :
- 150.9(mA)
- Must Release Voltage :
- 1.2 VDC
- Product Type :
- Automotive Relays
- Base Product Number :
- 1432794
- Coil Type :
- Non Latching
- Relay Type :
- GENERAL PURPOSE
- Must Operate Voltage :
- 7.8 VDC
- Mounting Style :
- Plug-In
- Contact Arrangement :
- SPDT
- Dropout Volt :
- 1.2VDC
- Operating Temp Range :
- -40C to 85C
- Minimum Operating Temperature :
- -40°C
- Packaging :
- Bulk
- LED Indicator :
- No
- Operating Temperature :
- -40°C ~ 85°C
- Turn Off Voltage (Min) :
- 1.2 VDC
- Contact Configuration :
- SPDT
- Coil Insulation :
- -
- Product Category :
- Automotive Relays
- Coil Power :
- 1.8 W
- Features :
- Resistor
- Pin Count :
- 5
- Subcategory :
- Relays
- Maximum Operating Temperature :
- +85°C
- Product Status :
- Active
- Contact Rating (Current) :
- 30A
- Product Height (mm) :
- 38.4(mm)
- Depth :
- 26.5mm
- Operate Time :
- 10(ms)
- Rad Hardened :
- No
- Release Time :
- 13ms
- Pick-up Voltage (Max) :
- 7.8VDC
- Seal Rating :
- -
- Manufacturer :
- TE Connectivity
- Coil Suppression Diode :
- No
- Coil Voltage :
- 12VDC
- Contact Form :
- 1 Form C
- Switching Voltage :
- 14VDC - Nom
- Termination Style :
- Quick Connect
- Product Length (mm) :
- 26.5(mm)
- Brand :
- TE Connectivity / AMP
- Coil Voltage DC :
- 12V
- Type :
- Power Relay
- RoHS :
- Details
- Turn On Voltage (Max) :
- 7.8 VDC
- Mounting Type :
- Chassis Mount
- Series :
- *
- Voltage Rating (VDC) :
- 16(V)
- Height :
- 24.5mm
- Coil Resistance :
- 79.5(ohm)
- Switching Current :
- 30A
- Seal :
- Sealed
- Relay Construction :
- Non-Latching
- Product Depth (mm) :
- 31.6(mm)
- Contact Material :
- Silver Tin Oxide
- Terminal Type :
- Quick Connect
- Package :
- Bulk
- Length :
- 26.5mm
- Datasheets
- 1432794-1
