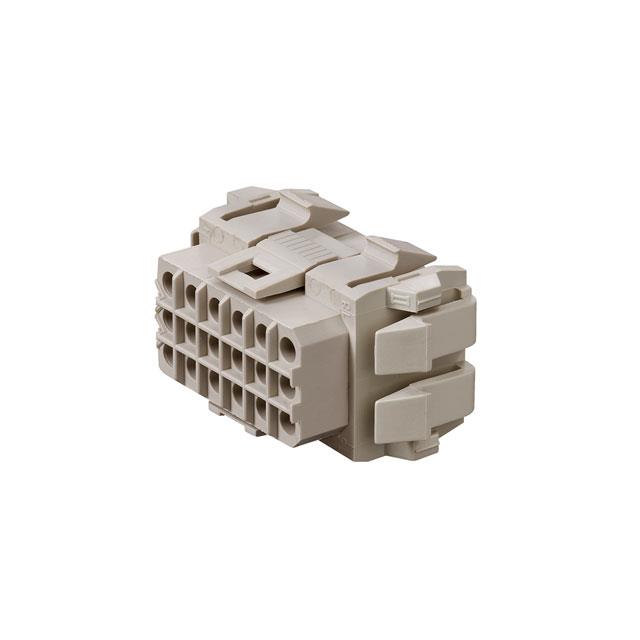

1417000000
Or copy the link below:
- Mfr.Part #
- 1417000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 18POS 5.00MM
- Stock
- 44,848
- In Stock ：
- 44,848
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Rectangular Connector Housings
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Note :
- Contacts Not Included
- Published :
- 2008
- IEC Conformance :
- No
- Mixed Contacts :
- No
- ECCN Code :
- EAR99
- MIL Conformance :
- No
- Factory Lead Time :
- 12 Weeks
- Pbfree Code :
- yes
- Row Spacing :
- 0.197 (5.00mm)
- RoHS Status :
- RoHS Compliant
- Series :
- Omnimate RSV
- Min Operating Temperature :
- -25°C
- Max Current Rating :
- 10A
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Contact Type :
- Female Socket
- Current Rating :
- 15A
- Housing Material :
- Polyamide
- Number of Rows :
- 3
- Filter Feature :
- No
- Total Number of Contacts :
- 18
- Number of Poles :
- 18
- Housing Color :
- Grey
- UL Flammability Code :
- 94V-0
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Max Operating Temperature :
- 100°C
- DIN Conformance :
- No
- Voltage - Rated :
- 600V
- Stripping Length :
- 4mm
- Wire/Cable Gauge :
- 26 AWG
- Color :
- Gray
- Approval Agency :
- CSA, UR
- Contact Material :
- COPPER ALLOY
- Contact Termination :
- Crimp
- Pitch :
- 0.197 5.00mm
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- COMPATIBLE CONTACTS: 1629790000; 1629810000; 1629750000; 1629770000; 1421900000
- Mount :
- Cable, Free Hanging, Panel
- Connector Type :
- Receptacle
- Option :
- GENERAL PURPOSE
- Fastening Type :
- Latch Holder
- Datasheets
- 1417000000
3 Rows Receptacle Bulk Gray Free Hanging (In-Line); Panel Mount Female Socket Crimp Omnimate RSV Polyamide
1417000000 Overview
Packaging is in the form of Receptacle.This device has a Free Hanging (In-Line); Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate RSV Series.Other features include COMPATIBLE CONTACTS: 1629790000; 1629810000; 1629750000; 1629770000; 1421900000, to name just a few.There is a mounting hole at Cable, Free Hanging, Panel.
1417000000 Features
Omnimate RSV series
1417000000 Applications
There are a lot of Weidmüller
1417000000 Rectangular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
