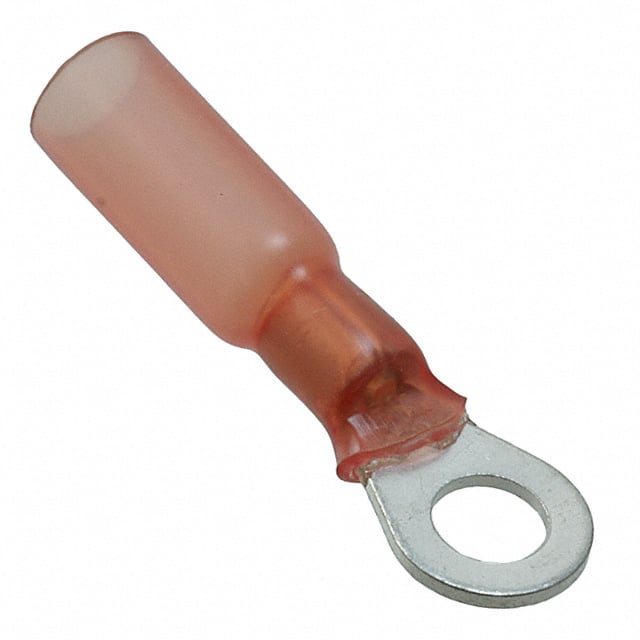

138601-000
Or copy the link below:
- Mfr.Part #
- 138601-000
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 18-22AWG CRIMP
- Stock
- 11,397
- In Stock ：
- 11,397
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Ring Connectors
- Insulation :
- Insulated with Heat Shrink
- Plating :
- Tin
- Material :
- Copper
- Contact Material :
- COPPER ALLOY
- Termination :
- Crimp
- Series :
- Dura-Seal
- Number of Holes :
- 1
- Body Material :
- Copper
- Color :
- Red
- Published :
- 2009
- Width - Outer Edges :
- 0.315 8.00mm
- Contact Plating :
- Tin
- Terminal Type :
- Circular
- Mount :
- Box
- Government Qualified :
- No
- Wire Gauge (Min) :
- 18 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge (Max) :
- 22 AWG
- Wire/Cable Gauge :
- 22 AWG
- Length :
- 31.9786mm
- Min Operating Temperature :
- -55°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diameter - Inside :
- 4.064 mm
- Factory Lead Time :
- 6 Weeks
- Wire Gauge :
- 18-22 AWG
- Material - Insulation :
- Polyamide (PA), Nylon
- Body Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Tin
- Stud Size :
- M4
- Max Operating Temperature :
- 125°C
- Radiation Hardening :
- No
- Tongue Thickness :
- 787.4μm
- Insulated Wire Support :
- yes
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Insulation Diameter :
- 3.81 mm
- ELV :
- Compliant
- Length - Overall :
- 1.260 32.00mm
- Stud Diameter :
- 4.3 mm
- Sealable :
- No
- Heavy Duty :
- No
- Datasheets
- 138601-000
