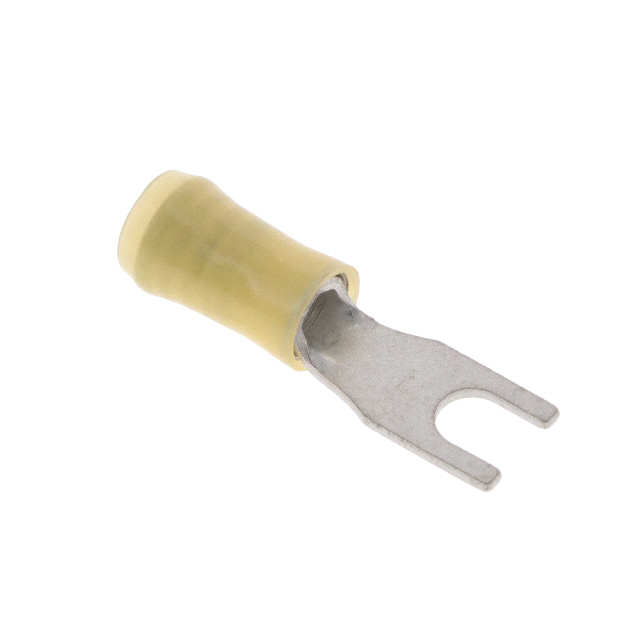

1377174-4
Or copy the link below:
- Mfr.Part #
- 1377174-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 10-12AWG M4.5
- Stock
- 8,566
- In Stock ：
- 8,566
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Tongue Thickness :
- 1.0668mm
- ELV :
- Compliant
- Stud/Tab Size :
- M4.5 Stud
- Tongue Inside Opening :
- 0.185 (4.70mm)
- Heavy Duty :
- No
- Insulated Wire Support :
- yes
- Plating :
- Tin
- Sealable :
- No
- Contact Finish :
- Tin
- Termination :
- Crimp
- Insulation :
- Insulated
- Series :
- PIDG
- Stud Diameter :
- 4.7 mm
- Insulation Diameter :
- 0.150 ~ 0.252 (3.81mm ~ 6.40mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2013
- Color :
- Yellow
- Stud Size :
- M4
- Contact Material :
- Copper
- Factory Lead Time :
- 27 Weeks
- Width - Outer Edges :
- 0.315 8.00mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- RoHS Status :
- RoHS Compliant
- Wire Gauge :
- 10-12 AWG
- Length - Overall :
- 1.228 31.19mm
- Length - Ring Center to Termination :
- 0.465 11.80mm
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Length :
- 31.2mm
- Material :
- Copper
- Government Qualified :
- No
- Length - Termination :
- 0.594 15.10mm
- Feature :
- Serrated Termination
- Terminal Type :
- Standard
- Material - Insulation :
- Polyamide (PA), Nylon
- Datasheets
- 1377174-4
1377174-4 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
