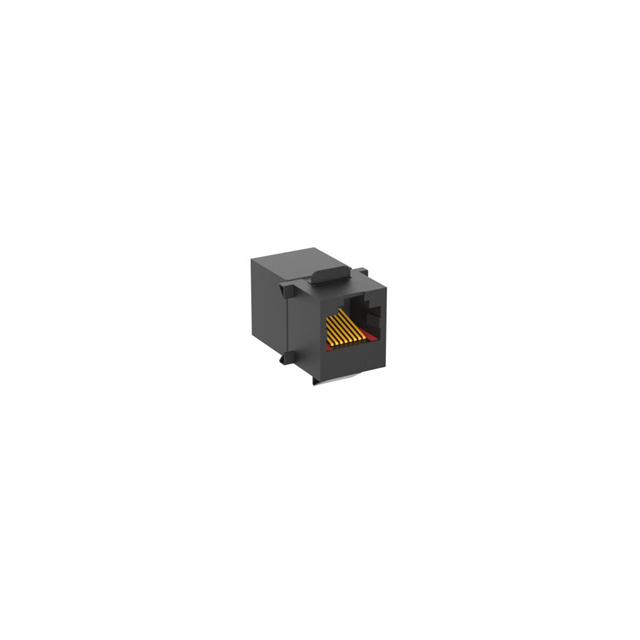

133421
Or copy the link below:
- Mfr.Part #
- 133421
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MODJACK 8P8C/RJ45 SHLD CAT 3/4
- Stock
- 200
- In Stock ：
- 200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Modular Connector Adapters
- Contact Gender :
- FEMALE
- Insulation Resistance :
- 500000000 Ω
- IEC Conformance :
- No
- Contact Style :
- TELCOM, MODULAR
- Connector Type :
- TELECOM AND DATACOM CONNECTOR
- Filter Feature :
- No
- Termination Type :
- Solder
- Type :
- Modular Jack
- Product Depth (mm) :
- 27.46(mm)
- Rated Current (Signal) :
- 1.5 A
- Contact Plating :
- Gold Over Nickel
- Contact Resistance :
- 30 mΩ
- Durability :
- 1000 Cycles
- Body Breadth :
- 0.74 inch
- Total Number of Contacts :
- 8
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Shell Material :
- Steel
- Manufacturer :
- ERNI
- Reliability :
- COMMERCIAL
- Number of Contacts :
- 8(POS)
- Mounting Type :
- BOARD AND PANEL
- Positions Loaded :
- 8
- Body Orientation :
- Straight
- Empty Shell :
- No
- UL Flammability Code :
- 94V-0
- Mounting Style :
- Panel
- Gender :
- F
- Body Depth :
- 1.081 inch
- Plating Thickness :
- 30u inch
- Termination Method :
- Solder
- Number of Terminals :
- 8
- Operating Temp Range :
- 0C to 70C
- Product Height (mm) :
- 20.6(mm)
- Family :
- 133421
- MIL Conformance :
- No
- Additional Feature :
- Shielded
- Subcategory :
- Telecom and Datacom Connectors
- Packaging :
- Bag
- Contact Resistance Max :
- 30(mohm)
- Contact Material :
- NOT SPECIFIED
- Number of Ports :
- 1(Port)
- Reach Compliance Code :
- Compliant
- Product Length (mm) :
- 18.54(mm)
- Body/Shell Style :
- JACK
- Dielectric Withstanding Voltage :
- 1000VAC V
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Shell Finish :
- Nickel
- Datasheets
- 133421
