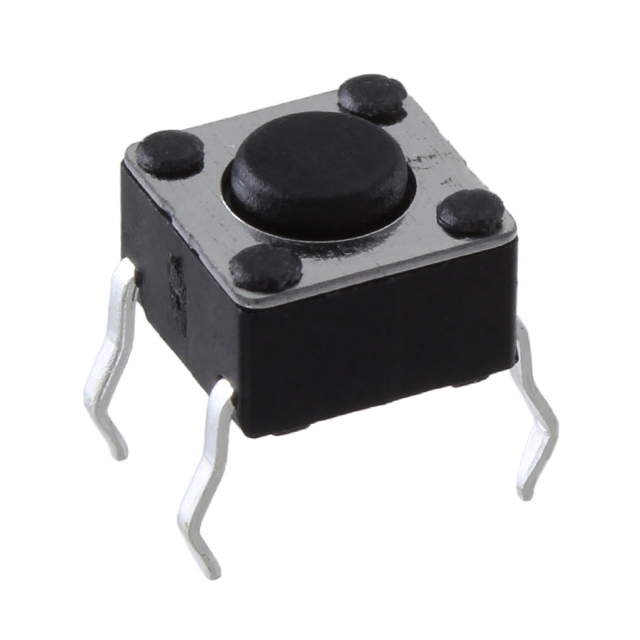

1301.9301
Or copy the link below:
- Mfr.Part #
- 1301.9301
- Manufacturer
- SCHURTER
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 5,654
- In Stock ：
- 5,654
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SCHURTER
- Product Category :
- Operating Temperature :
- -20°C~70°C
- Number of Positions :
- 2
- Series :
- LPH
- Mechanical Life :
- 100,000 Cycles
- PCB Hole Count :
- 4
- Ingress Protection :
- IP40
- Mount :
- Through Hole
- Actuator Height off PCB, Vertical :
- 4.30mm
- Contact Plating :
- Silver
- Additional Feature :
- LOOSE IN BOXES PACKAGING
- Voltage - Rated DC :
- 12V
- Radiation Hardening :
- No
- Circuit :
- SPST-NO
- Switch Function :
- Off-Mom
- Actuator Type :
- Standard
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Max Current Rating :
- 50mA
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Width :
- 6mm
- Switch Travel :
- 0.25mm
- Current Rating :
- 50mA
- Contact Current Rating :
- 50mA
- Actuator Orientation :
- Top Actuated
- Contact Resistance :
- 100MOhm
- Number of Switches :
- 1
- Termination :
- PC Pins
- Illumination Type :
- Illuminated, Non-Illuminated
- Length :
- 6mm
- Switch Type :
- KEYPAD SWITCH
- Body Height :
- 3.5mm
- Actuator Length :
- 800μm
- Max Voltage Rating (DC) :
- 12V
- Feature :
- Tactile Feedback
- Factory Lead Time :
- 14 Weeks
- ECCN Code :
- EAR99
- Contact Current(DC)-Max :
- 0.05A
- Outline :
- 6.00mm x 6.00mm
- Contact Bounce Time-Max :
- 0.1ms
- Contact Material :
- Copper, Silver
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- Vendor Undefined
- Electrical Life :
- 100000 Cycle(s)
- Voltage - Rated AC :
- 12V
- HTS Code :
- 8536.50.90.40
- Throw Configuration :
- SPST
- Operating Force :
- 160gf
- Termination Style :
- PC Pin
- Orientation :
- Straight
- Illumination :
- Non-Illuminated
- Datasheets
- 1301.9301
