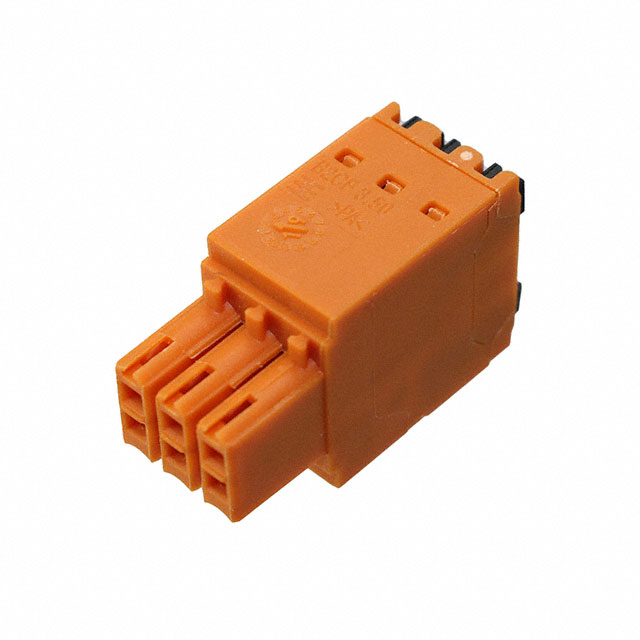

1277280000
Or copy the link below:
- Mfr.Part #
- 1277280000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 6POS STR 3.5MM
- Stock
- 127
- In Stock ：
- 127
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Termination :
- Screwless
- Number of Levels :
- 2
- Voltage - IEC :
- 320V
- Wire Gauge (Max) :
- 26 AWG
- Insulation Material :
- Nylon
- Stripping Length :
- 10mm
- Current Rating :
- 10A
- Pitch :
- 0.138 3.50mm
- Positions Per Level :
- 3
- Insulation Height :
- 0.598 15.19mm
- Packaging :
- Bulk
- Operating Temperature :
- -50°C~120°C
- Plug Wire Entry :
- 180°
- Voltage - Rated :
- 300V
- ECCN Code :
- EAR99
- Housing Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Mating Finish :
- Tin
- Wire Gauge or Range - mm² :
- 0.14-1.5mm2
- Wire Gauge (Min) :
- 16 AWG
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 6
- Number of Rows :
- 1
- Mount :
- Free Hanging
- Contact Material :
- COPPER ALLOY
- Ingress Protection :
- IP20
- Type :
- Plug, Female Sockets
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- RoHS Compliant
- Current - UL :
- 9.5A
- Current :
- 10A
- Series :
- Omnimate B2CF
- Voltage :
- 300V
- Current - IEC :
- 13.4A
- Wire Gauge or Range - AWG :
- 16-26 AWG
- Color :
- Orange
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Flammability Rating :
- UL94 V-0
- Datasheets
- 1277280000
1277280000 Documents
Bulk 0.138 3.50mm Orange 2 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate B2CF Polyamide (PA66), Nylon 6/6, Glass Filled Tin Copper Alloy
1277280000 Overview
This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate B2CF Series.There is a mounting hole at Free Hanging.Devices operate at -50°C~120°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
1277280000 Features
Omnimate B2CF series
1277280000 Applications
There are a lot of Weidmüller
1277280000 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
