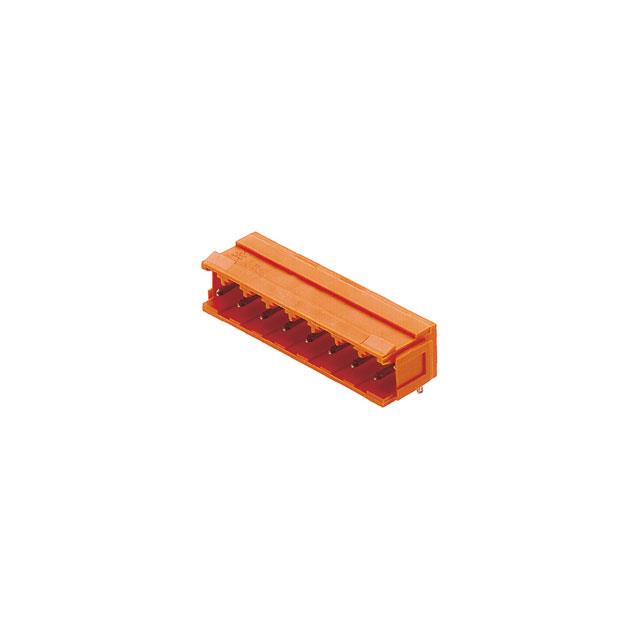

1242160000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Radiation Hardening :

No

Option :

GENERAL PURPOSE

Pitch :

0.200 5.08mm

Filter Feature :

No

UL Flammability Code :

94V-0

Termination Style :

Solder

Color :

Orange

Contact Tail Length :

0.126 3.20mm

Mounting Type :

Through Hole

Factory Lead Time :

12 Weeks

Header Orientation :

90°, Right Angle

RoHS Status :

RoHS Compliant

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Current - IEC :

17.5A

Current - UL :

10A

Operating Temperature :

-50°C~120°C

Packaging :

Bulk

Total Number of Contacts :

13

Number of Levels :

1

Number of Rows :

2

Voltage - IEC :

400V

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

0.370 9.40mm

Series :

Unimate SLA

DIN Conformance :

No

Mount :

Through Hole

Type :

Header, Male Pins, Shrouded (4 Side)

Pbfree Code :

yes

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

MIL Conformance :

No

JESD-609 Code :

e3

Number of Positions :

13

Contact Material :

COPPER ALLOY

Voltage - UL :

300V

Contact Mating Finish :

Tin

Gender :

Male
