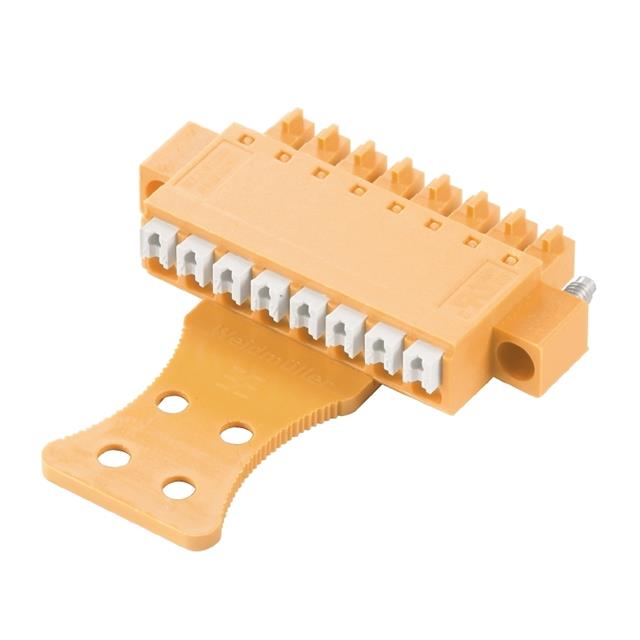

1236010000
Or copy the link below:
- Mfr.Part #
- 1236010000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 9POS STR 3.81MM
- Stock
- 35,827
- In Stock ：
- 35,827
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- RoHS Status :
- RoHS Compliant
- Stripping Length :
- 8mm
- Wire Gauge or Range - AWG :
- 16-26 AWG
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -50°C~120°C
- Contact Material :
- COPPER ALLOY
- Ingress Protection :
- IP20
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.150 3.81mm
- Feature :
- Mating Flange, Strain Relief
- Color :
- Orange
- Current - UL :
- 10A
- Contact Mating Finish :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - mm² :
- 0.14-1.5mm2
- Voltage - Rated :
- 300V
- Voltage - IEC :
- 320V
- Factory Lead Time :
- 12 Weeks
- Number of Positions :
- 9
- Series :
- Omnimate BC
- Insulation Material :
- Nylon
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Number of Levels :
- 1
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Current Rating :
- 17.5A
- Voltage - UL :
- 300V
- Insulation Height :
- 0.364 9.25mm
- Wire Strip Length :
- 9mm
- Housing Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Type :
- Plug, Female Sockets
- Plug Wire Entry :
- 180°
- Datasheets
- 1236010000
Bulk 0.150 3.81mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BC Polyamide (PA66), Nylon 6/6, Glass Filled Tin Copper Alloy
1236010000 Overview
There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate BC Series.In many ways, its Mating Flange, Strain Relief feature makes it more powerful.In this case, the device operates at -50°C~120°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
1236010000 Features
Omnimate BC series
1236010000 Applications
There are a lot of Weidmüller
1236010000 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
