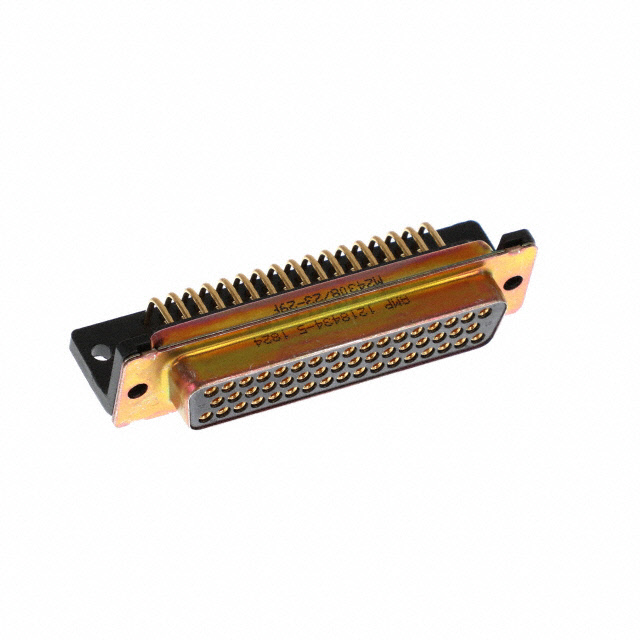

1218434-5

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub Connector Assemblies

IEC Conformance :

No

Packaging :

Bulk

Empty Shell :

No

PCB Contact Row Spacing :

2.8448 mm

Shell Material :

Steel

Factory Lead Time :

19 Weeks

Gender :

FEMALE

Mounting Type :

Through Hole, Right Angle

Number of Ports :

1

Number of Rows :

3

Contact Plating :

Gold, Nickel

Orientation :

RIGHT ANGLE

Lead Free :

Contains Lead

Number Of PCB Rows :

3

Pitch :

2.77mm

Backset Spacing :

0.318 (8.08mm)

ELV :

Non-Compliant

Contact Type :

Signal

Body Depth :

0.604 inch

Operating Temperature :

-55°C~125°C

Shell Size, Connector Layout :

5 DD D

RoHS Status :

Non-RoHS Compliant

Shell Material, Finish :

Steel, Cadmium Plated

MIL Conformance :

yes

Flange Feature :

Housing/Shell (Unthreaded)

Contact Material :

Brass

DIN Conformance :

No

Width :

10.8mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Connector Type :

Receptacle, Female Sockets

Series :

Military, MIL-DTL-24308, AMPLIMITE 109

Contact Finish Thickness :

10.0μin 0.25μm

Plating :

Cadmium, Steel

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Sealable :

No

Current Rating :

5A

Reliability :

COMMERCIAL

PCB Mounting Orientation :

RIGHT ANGLE

Filter Feature :

No

Published :

2008

Number of Terminations :

50

Total Number of Contacts :

50

Mixed Contacts :

No

Color :

Black

Moisture Sensitivity Level (MSL) :

Not Applicable

PCB Contact Pattern :

STAGGERED

Hole Diameter :

3.175 mm

Lead Length :

3.175mm

Option :

GENERAL PURPOSE

Connector Style :

D-Sub

Contact Finish :

Gold

Mount :

Through Hole

Body Breadth :

0.62 inch

Length :

67.31mm

Termination :

Solder

Housing Material :

Polyester
