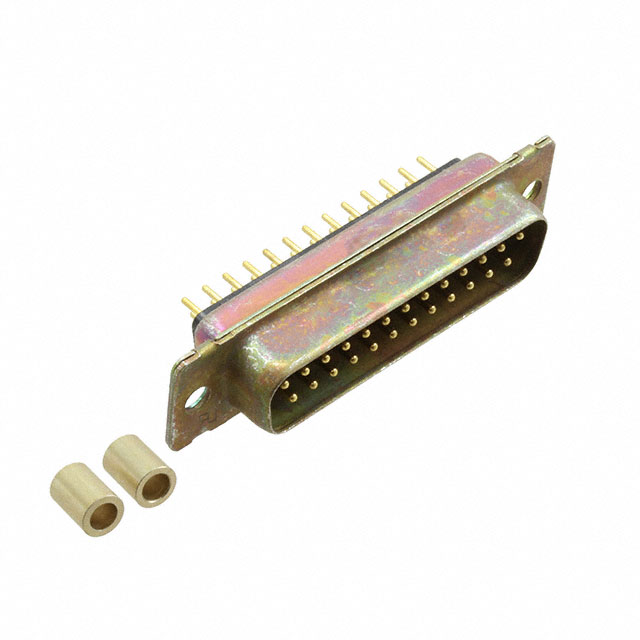

1218124-3

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub Connector Assemblies

Pbfree Code :

No

Flammability Rating :

UL94 V-0

Height :

14.8mm

Lead Free :

Contains Lead

Contact Finish Thickness :

50.0μin 1.27μm

Length :

53.04mm

Total Number of Contacts :

25

Color :

Black

Body Breadth :

0.509 inch

HTS Code :

8536.69.40.30

Moisture Sensitivity Level (MSL) :

Not Applicable

Body Material :

Metal

Published :

2008

ECCN Code :

EAR99

REACH SVHC :

Unknown

IEC Conformance :

No

Option :

GENERAL PURPOSE

Packaging :

Bulk

Pitch :

2.74mm

DIN Conformance :

No

Termination :

Solder

Sealable :

No

Plating :

Cadmium

Empty Shell :

No

MIL Conformance :

yes

ELV :

Non-Compliant

Number of Rows :

2

Shell Size, Connector Layout :

3 DB B

Number of Ports :

1

Mount :

Through Hole

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

10 Weeks

Shell Material, Finish :

Steel, Cadmium Plated

PCB Contact Pattern :

STAGGERED

Contact Material :

Brass

Shell Material :

Steel

Depth :

12.55mm

Current Rating :

5A

Mounting Type :

Through Hole

Number of Positions :

25

Connector Type :

Plug, Male Pins

Housing Material :

Polyester

Reliability :

COMMERCIAL

Contact Finish :

Gold

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Gender :

Male

Connector Style :

D-Sub

Mixed Contacts :

No

Series :

Military, MIL-DTL-24308, AMPLIMITE 109

RoHS Status :

Non-RoHS Compliant

Hole Diameter :

3.048 mm

Orientation :

Vertical

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Filter Feature :

No

Lead Length :

3.9624mm

Contact Type :

Signal

Flange Feature :

Housing/Shell (Unthreaded)
