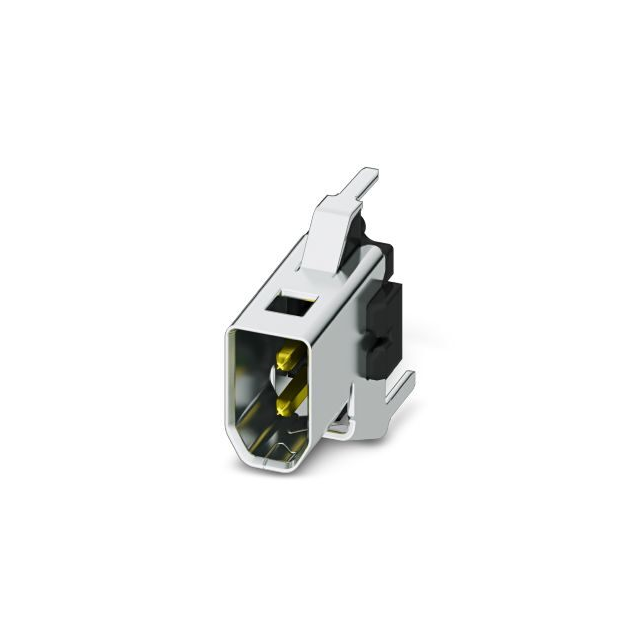

1163798

Share

Or copy the link below:

Mfr.Part #
1163798
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
SPE PCB CONNECTOR, TYPE: IEC 631
Stock
14
In Stock :
14

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Modular Connector Jacks
Voltage Rating :
72 VDC
Operating Temperature :
-40°C ~ 85°C
Number of Ports :
1 Port
Color :
Black
Current Rating :
4 A
Ingress Protection :
IP20
Flammability Rating :
UL 94 V-0
LED Color :
Does Not Contain LED
Product :
Connectors
Mounting Type :
PCB Mount
Length :
9.3mm
Type :
Single Pair Ethernet (SPE)
Package :
Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
LEDs :
Without LED
Contact Finish Thickness :
-
Connector Orientation :
Vertical
IP Rating :
IP20
Operating Temperature Range :
- 40 C to + 85 C
Depth :
11.4mm
Orientation :
90° Angle (Right)
Contact Material :
COPPER ALLOY
Category :
Other
Port Configuration :
1 x 1 (Port)
Series :
SPE
Ratings :
CatB
Connector Type :
Ethernet
Contact Finish :
Gold
Minimum Operating Temperature :
- 40 C
Transparent :
No
Housing Material :
Liquid Crystal Polymer (LCP)
Ethernet Connector Type :
SPE
Number of Positions/Contacts :
2P2C Single Pair Ethernet (SPE)
Number of Rows :
1
Termination Style :
Solder Pin
Tab Direction :
-
Width :
5mm
Configuration :
1x1
Contact Plating :
Gold
Product Status :
Active
Number of Contacts :
2 Contact
Gender :
Plug (Male)
USOC Codes :
Single Pair Ethernet (SPE)
Mounting Angle :
Vertical
Termination :
Solder
Shielding :
Unshielded
Number of Positions :
2 Position
Number of Ways :
2
Application :
1000 Base-T
Maximum Operating Temperature :
+ 85 C
Mounting Style :
Mounting Peg
Features :
-
Datasheets
1163798
Introducing Modular Connector Jacks Phoenix Contact 1163798 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C ~ 85°C, Mounting Type:PCB Mount, Type:Single Pair Ethernet (SPE), 1163798 pinout, 1163798 datasheet PDF, 1163798 amp .Beyond Modular Connector Jacks Phoenix Contact 1163798 ,we also offer 0955016669, E5J88-00LJG2-L, SS-6488-NF, Our vast inventory has you covered. Contact us now for immediate solutions.
