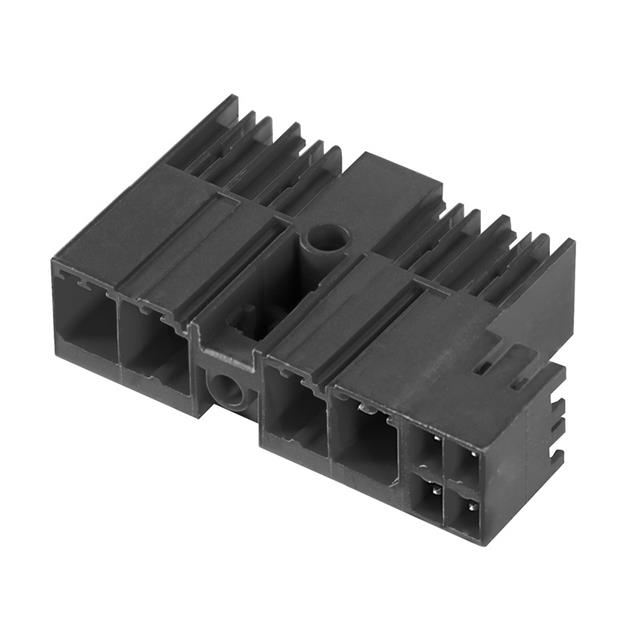

1157000000
Or copy the link below:
- Mfr.Part #
- 1157000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 9POS 90DEG 7.62MM
- Stock
- 35,793
- In Stock ：
- 35,793
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Mounting Type :
- Through Hole
- Contact Mating Finish :
- Tin
- Hole Diameter :
- 1.3 mm
- Contact Tail Length :
- 0.138 3.50mm
- Termination Style :
- Solder
- Insulation Height :
- 0.449 11.40mm
- Current - UL :
- 33A
- Factory Lead Time :
- 12 Weeks
- Number of Poles :
- 5
- Color :
- Black
- Operating Temperature :
- -50°C~130°C
- RoHS Status :
- RoHS Compliant
- Ingress Protection :
- IP20
- Approval Agency :
- CSA, cURus
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 35A
- Positions Per Level :
- 9 (5 Power + 4 Signal)
- Number of Levels :
- Hybrid
- Current - IEC :
- 41A
- Packaging :
- Bulk
- Header Orientation :
- 90°, Right Angle
- Number of Rows :
- 1
- Feature :
- Latch Holder
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Flammability Rating :
- UL94 V-0
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Series :
- Omnimate SV
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - IEC :
- 1kV
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 300V
- Insulation Material :
- Nylon
- Number of Positions :
- 9
- Pitch :
- 0.300 7.62mm
- Datasheets
- 1157000000
Bulk 0.300 7.62mm Black Hybrid Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SV Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1157000000 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SV Series.It is more powerful in many ways due to its Latch Holder feature.It operates at an operating temperature of -50°C~130°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
1157000000 Features
Omnimate SV series
1157000000 Applications
There are a lot of Weidmüller
1157000000 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
