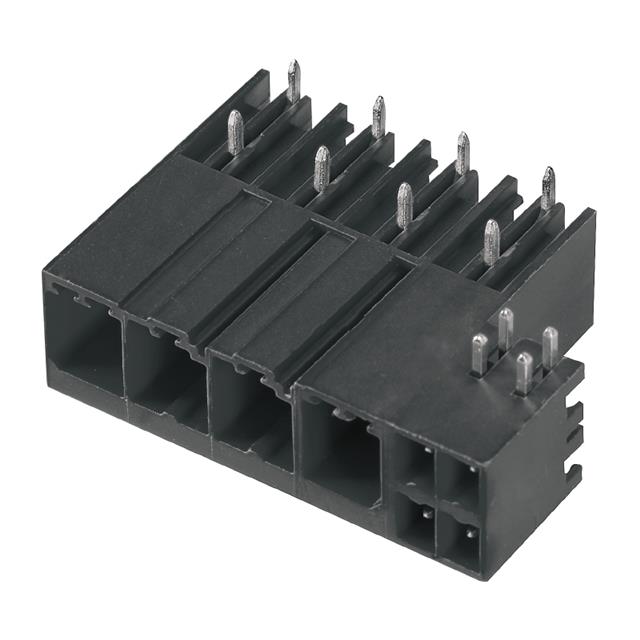

1091010000
Or copy the link below:
- Mfr.Part #
- 1091010000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 9POS 90DEG 7.62MM
- Stock
- 41,481
- In Stock ：
- 41,481
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Number of Positions :
- 9
- Number of Rows :
- 1
- Hole Diameter :
- 1.3 mm
- Contact Tail Length :
- 0.138 3.50mm
- Voltage - IEC :
- 1kV
- Number of Poles :
- 3
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Number of Levels :
- Hybrid
- Current - UL :
- 33A
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Insulation Material :
- Nylon
- Series :
- Omnimate SV
- Operating Temperature :
- 130°C
- Material Flammability Rating :
- UL94 V-0
- Current - IEC :
- 41A
- Contact Material :
- COPPER ALLOY
- Color :
- Black
- Packaging :
- Bulk
- Voltage - Rated :
- 300V
- Ingress Protection :
- IP20
- Positions Per Level :
- 9 (3 Power + 6 Signal)
- Termination Style :
- Solder
- Mounting Type :
- Through Hole
- Approval Agency :
- CSA, cURus
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 35A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Header Orientation :
- 90°, Right Angle, Under Board
- Insulation Height :
- 0.449 11.40mm
- Factory Lead Time :
- 12 Weeks
- Pitch :
- 0.300 7.62mm
- Contact Mating Finish :
- Tin
- Datasheets
- 1091010000
Bulk 0.300 7.62mm Black Hybrid Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SV Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1091010000 Overview
Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate SV Series.Operating temperature is set to 130°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
1091010000 Features
Omnimate SV series
1091010000 Applications
There are a lot of Weidmüller
1091010000 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
