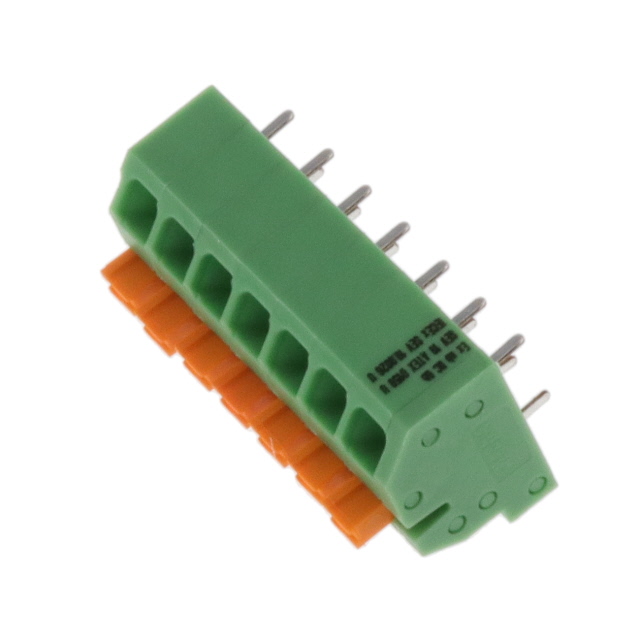

1071004
Or copy the link below:
- Mfr.Part #
- 1071004
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- PCB TERMINAL BLOCK, NOMINAL CURR
- Stock
- 65
- In Stock ：
- 65
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Wire to Board
- Voltage Rating :
- 44 V
- Screw Material - Plating :
- -
- RoHS :
- Details
- Height :
- 12.8 mm
- Product :
- Fixed Terminal Blocks
- Package :
- Tray
- Mating Orientation :
- 45° (135°) Angle with Board
- Connectable conductor cross section solid-core :
- 0.2 - 1.5
- Features :
- Interlocking (Side)
- Mounting Style :
- PCB Mount
- Termination Style :
- Solder Pin
- Contact Material :
- Copper
- Torque - Screw :
- -
- Number of Positions :
- 7 Position
- Screw Thread :
- -
- Current Rating :
- 16 A
- Operating Temperature :
- -40°C ~ 100°C
- Length :
- 11 mm
- Series :
- COMBICON SPTAF
- Wire Termination :
- Screwless - Leg Spring, Push-In Spring
- Product Status :
- Active
- Connectable conductor cross section fine-strand without cable end sleeve :
- 0.2 - 0.75
- Connection Method :
- Push-In
- Contact Material - Plating :
- Copper Alloy - Tin Plated
- Wire Gauge :
- 16-24 AWG
- Mounting Angle :
- 45 Deg
- Connectable conductor cross section fine-strand with cable end sleeve :
- 0.25 - 0.75
- Positions Per Level :
- 7
- Color :
- Green
- Number of Levels :
- 1
- Clamp Material - Plating :
- -
- Pitch :
- 3.5 mm
- Mounting Type :
- Through Hole
- Housing Material :
- Polyamide (PA), Nylon
- Rated current In :
- 16
- Datasheets
- 1071004
1071004 Documents
3.5 mm Green Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPTAF
1071004 Overview
The device's mounting type is Through Hole.It belongs to the COMBICON SPTAF Series of products.The device runs in -40°C ~ 100°C Operating Temperature.
1071004 Features
COMBICON SPTAF series
1071004 Applications
There are a lot of Phoenix Contact
1071004 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
