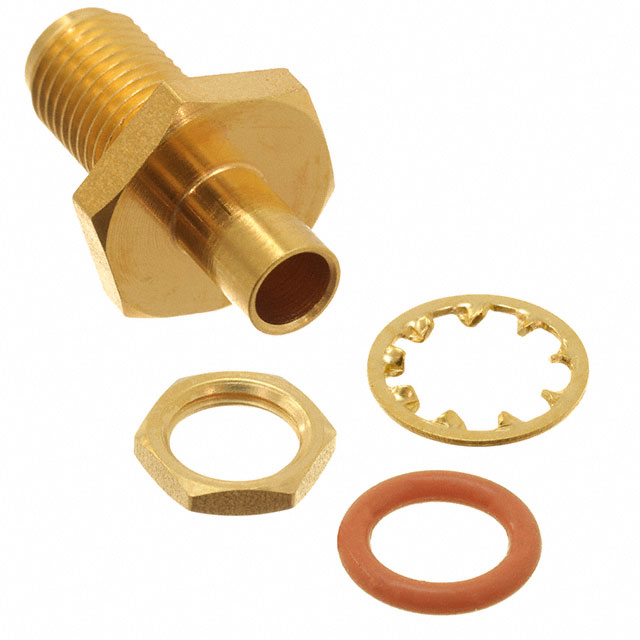

1051001-1
Or copy the link below:
- Mfr.Part #
- 1051001-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SMA JACK STR 50 OHM SOLDER
- Stock
- 102
- In Stock ：
- 102
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Contact Style :
- COAX
- Length :
- 19.1mm
- ELV :
- Compliant
- Number of Positions :
- 1
- Gender :
- Male
- Published :
- 2000
- Body Material :
- Stainless Steel
- Withdrawl Force-Min :
- .278 N
- Mating Cycles :
- 500
- Voltage - Rated :
- 500V
- Center Contact Material :
- BERYLLIUM COPPER
- Lead Free :
- Not Applicable
- Cable Group :
- RG-402 (.141 Semi Rigid)
- Contact Termination :
- Solder
- Additional Feature :
- APPLICABLE CABLE: RG 402/U
- Center Contact Plating :
- Gold
- Contact Material :
- Copper
- Total Number of Contacts :
- 1
- Packaging :
- Bulk
- Depth :
- 11.1mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 3mOhm
- Mounting Feature :
- Bulkhead - Front Side Nut
- Frequency :
- 18GHz
- Factory Lead Time :
- 12 Weeks
- Mount :
- Panel
- Connector Style :
- SMA
- Includes :
- 4 pcs - 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut
- Fastening Type :
- Threaded
- Mounting Type :
- Panel Mount
- IEC Conformance :
- No
- Pbfree Code :
- yes
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Connector Type :
- Jack, Female Socket
- Impedance :
- 50Ohm
- ECCN Code :
- EAR99
- Sealable :
- yes
- Filter Feature :
- No
- Insulation Material :
- Polytetrafluoroethylene
- Number of Ports :
- 1
- Insertion Force-Max :
- 8.896 N
- Insulation Resistance :
- 5GOhm
- Polarity :
- Standard
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- MIL Conformance :
- No
- Radiation Hardening :
- No
- Orientation :
- Straight
- Operating Temperature :
- -65°C~165°C
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Datasheets
- 1051001-1
Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
1051001-1 Overview
A Jack, Female Socket package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as APPLICABLE CABLE: RG 402/U, to name a few.With 1 ports, it is capable of managing a wide range of tasks.By Panel, the part is mounted.Operating temperature is set to -65°C~165°C.An effective performance can be achieved at a frequency of 18GHz.
1051001-1 Features
1051001-1 Applications
There are a lot of TE Connectivity AMP Connectors
1051001-1 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
