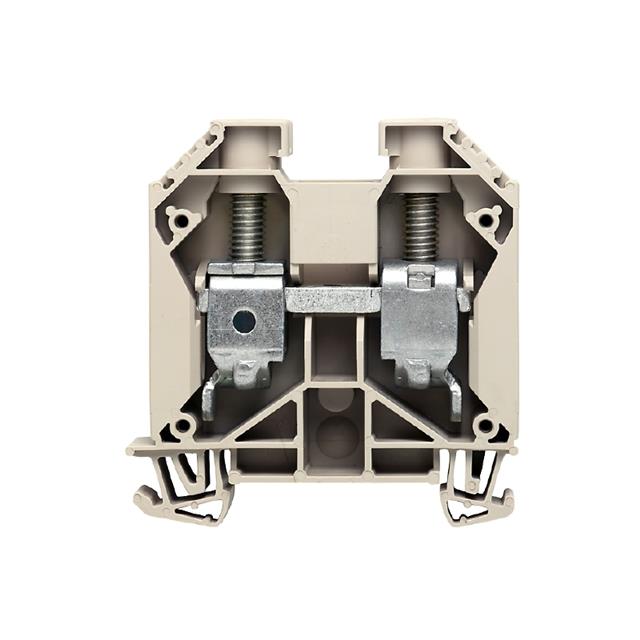

1029000000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Factory Lead Time :

8 Weeks

Wire Gauge (Max) :

12 AWG

Flammability Rating :

UL94 V-0

Material - Insulation :

Thermoplastic, Wemid

Type :

Feed Through

Series :

W

Safety Approval :

UL; CSA; CE

Weight :

56.12g

Voltage - Rated :

8kV

Number of Levels :

1

Terminal Width :

16.0mm

Additional Feature :

STANDARD: UL 94V-0

Wire Gauge (Min) :

0 AWG

ECCN Code :

EAR99

Height :

62.5mm

Width :

16mm

HTS Code :

8536.69.40.40

Radiation Hardening :

No

Voltage - IEC :

1000V

Voltage :

600V

Wire Gauge or Range - AWG :

1/0-12 AWG

Number of Rows :

2

Termination Style :

Screw

Material Flammability Rating :

UL94 V-0

Current :

150A

Number of Decks :

1

Pbfree Code :

yes

Current - IEC :

125A

Approval Agency :

CE, CSA, IEC, NEMKO, UR

Wire Gauge or Range - mm² :

2.5-16mm2

Current Rating :

125A

Stripping Length :

18mm

Published :

2012

Length :

60mm

Orientation :

Straight

Color :

Beige
