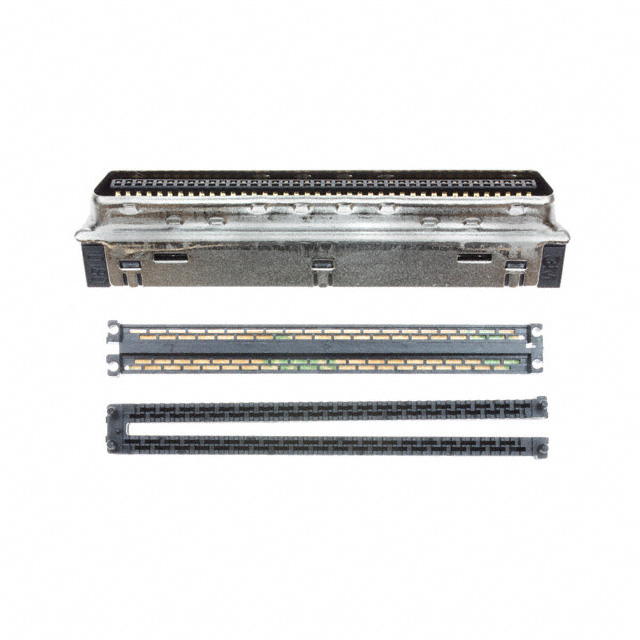

10180-6000EC

Share

Or copy the link below:

Mfr.Part #
10180-6000EC
Manufacturer
3M
Package / Case
Datasheet
Download
Description
CONN PLUG 80POS STR IDC
Stock
1,057
In Stock :
1,057

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
3M
Product Category :
Centronics Connectors
Contact Plating :
Gold
Connector Style :
Center Strip Contacts
Number of Contacts :
80
Factory Lead Time :
14 Weeks
Published :
1999
Orientation :
RIGHT ANGLE
RoHS Status :
RoHS Compliant
Width :
12.7mm
Housing Color :
Black
Length :
60.1mm
Pitch :
1.27mm
Feature :
Shielded
Lead Free :
Lead Free
Max Operating Temperature :
85°C
Housing Material :
Steel
Current Rating :
1A
Contact Material :
Copper
Body Material :
Steel
Mount :
Cable, Free Hanging
Min Operating Temperature :
-20°C
Number of Terminations :
80
Gender :
Male
Termination :
IDC
Contact Finish Thickness :
30.0μin 0.76μm
Number of Positions :
80
Connector Type :
PLUG
Contact Finish :
Gold
Series :
101, Mini D Ribbon (MDR)
Flammability Rating :
UL94 V-0
Plating :
Nickel
Weight :
453.59237g
Number of Rows :
2
Depth :
9.1mm
Max Current Rating :
1A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Ports :
1
Mounting Type :
Free Hanging (In-Line)
Datasheets
10180-6000EC
Introducing Centronics Connectors 3M 10180-6000EC from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:80, Mounting Type:Free Hanging (In-Line), 10180-6000EC pinout, 10180-6000EC datasheet PDF, 10180-6000EC amp .Beyond Centronics Connectors 3M 10180-6000EC ,we also offer 10268-6212PC, 10214-1210PE, 10126-3000PE, Our vast inventory has you covered. Contact us now for immediate solutions.
