100400-4

Share

Or copy the link below:

Mfr.Part #
100400-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 4POS 0.1 TIN PCB R/A
Stock
11,054
In Stock :
11,054

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Contact Finish - Post :
Tin
Orientation :
RIGHT ANGLE
Mounting Type :
Through Hole, Right Angle
Min Operating Temperature :
-40°C
Connector Type :
Receptacle
Number of Contacts :
4
Housing Color :
Red
Style :
Board to Board or Cable
Contact Material :
Phosphor Bronze
Published :
2006
Radiation Hardening :
No
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
Current Rating :
1.5A
Insulation Resistance :
1GOhm
Color :
Red
Voltage - Rated :
100Vdc
Insulation Height :
0.228 5.80mm
Number of Positions Loaded :
All
Pitch - Mating :
0.100 2.54mm
Depth :
5.3mm
Housing Material :
Polyester
Operating Temperature :
-40°C~105°C
PCB Mounting Orientation :
RIGHT ANGLE
Material Flammability Rating :
UL94 V-0
Insulation Color :
Red
Contact Current Rating :
1.5A
Packaging :
Tape and Reel (TR)
Contact Plating :
Tin
PCB Mount Retention :
With
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
ELV :
Compliant
Fastening Type :
Push-Pull
Number of Rows :
2
Mount :
Through Hole
Operating Supply Voltage :
100V
Row Spacing - Mating :
0.100 (2.54mm)
Mating Connector Lock :
Without
Number of Positions :
4
RoHS Status :
RoHS Compliant
Height :
5.842mm
Pitch :
1.27mm
Length :
6.858mm
Factory Lead Time :
23 Weeks
Insulation Material :
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Max Operating Temperature :
105°C
Contact Type :
Forked
Flammability Rating :
UL94 V-0
Contact Length - Post :
0.122 3.10mm
Series :
Micro-MaTch
PCB Thickness :
1.6mm
Termination :
Kinked Pin, Solder
Contact Finish - Mating :
Tin
Datasheets
100400-4
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 100400-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-40°C~105°C, 100400-4 pinout, 100400-4 datasheet PDF, 100400-4 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 100400-4 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

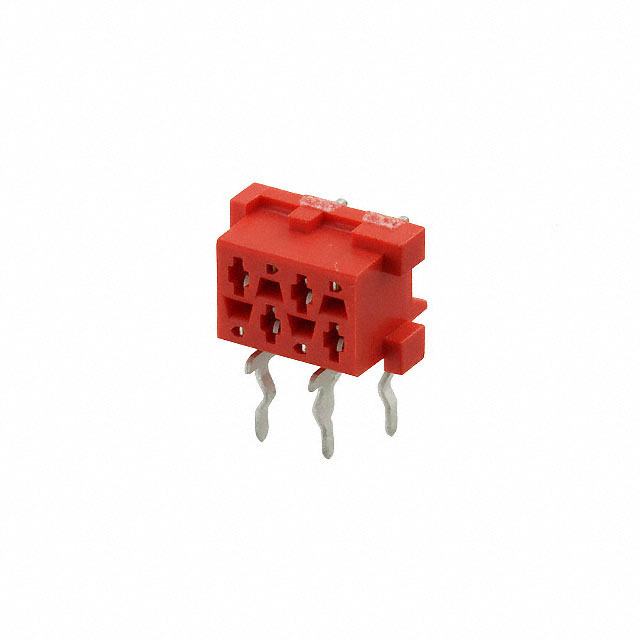

TE Connectivity AMP Connectors 100400-4


2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole, Right Angle Tape & Reel (TR) Tin Polybutylene Terephthalate (PBT), Polyester, Glass Filled 4 Positions Forked

100400-4 Overview


It comes in Receptacle packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Micro-MaTch Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.The part is mounted by Through Hole.This memory's operating supply voltage is 100V.The device runs in -40°C~105°C Operating Temperature.

100400-4 Features


Micro-MaTch series


100400-4 Applications


There are a lot of TE Connectivity AMP Connectors
100400-4 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
