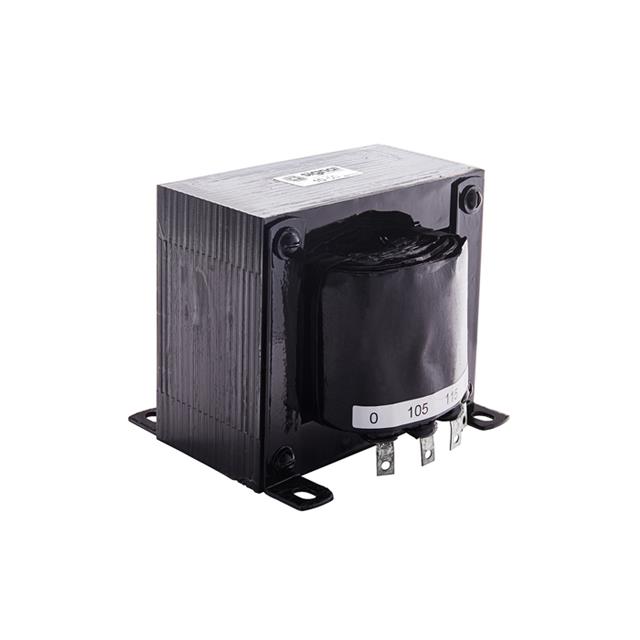

10-100
Or copy the link below:
- Mfr.Part #
- 10-100
- Manufacturer
- Signal Transformer
- Package / Case
- Datasheet
- Download
- Description
- PWR XFMR LAMINATED 1000VA CHAS
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Signal Transformer
- Product Category :
- Power Transformers
- Max Output Current :
- 100A
- Max Power Dissipation :
- 1kW
- Current - Output (Max) :
- Parallel 200A Series 100A
- RoHS Status :
- ROHS3 Compliant
- Type :
- Laminated Core
- Center Tap :
- yes
- Height Seated (Max) :
- 134.90mm
- Power - Max :
- 1000VA
- Factory Lead Time :
- 14 Weeks
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Size / Dimension :
- 162.00mm Lx184.20mm W
- Mount :
- Chassis Mount
- Weight :
- 35lbs 15.9kg
- Secondary Winding(s) :
- Single, Multiple Taps
- Published :
- 2009
- Mounting Type :
- Chassis Mount
- Voltage - Primary :
- 105V 115V 125V
- Length :
- 162mm
- Termination :
- Solder
- Voltage - Secondary (Full Load) :
- Parallel 5V Series 10V
- Voltage - Isolation :
- 1500Vrms
- Primary Winding(s) :
- Single, Multiple Taps
- Termination Style :
- Solder, Quick Connect
- Width :
- 184.2mm
- Datasheets
- 10-100
10-100 Documents
10-100 datasheet pdf and Power Transformers product details from Signal Transformer stock available at
