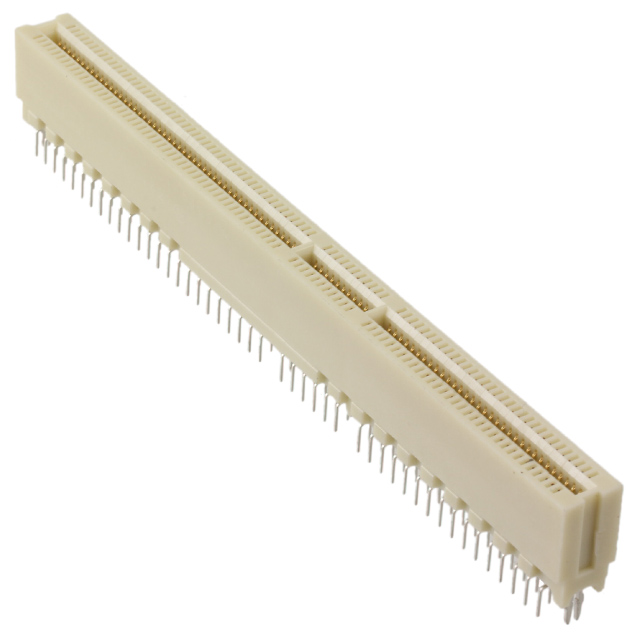

1-5145169-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Radiation Hardening :

No

Factory Lead Time :

19 Weeks

RoHS Status :

RoHS Compliant

Body/Shell Style :

Receptacle

Dielectric Withstanding Voltage :

500VAC V

Insulation Resistance :

1000000000Ohm

Mounting Type :

Through Hole

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Max Operating Temperature :

85°C

Body Breadth :

0.35 inch

Reference Standard :

CSA

Length :

128mm

DIN Conformance :

No

Height :

15.5mm

Read Out :

Dual

MIL Conformance :

No

Connector Type :

CARD EDGE CONNECTOR

Total Number of Contacts :

184

Material - Insulation :

Thermoplastic

Series :

Standard Edge .050

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Published :

2009

Min Operating Temperature :

-55°C

Body Depth :

0.61 inch

Rated Current (Signal) :

1A

Number of Positions/Bay/Row :

49; 11; 32

Contact Finish Thickness :

30.0μin 0.76μm

Current Rating :

500mA

Pitch :

0.050 1.27mm

Operating Supply Voltage :

203V

Card Type :

PCI 5V 64 Bit

Plating Thickness :

2.537μm

Number of Rows :

2

Width :

8.88mm

Packaging :

Bulk

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Contact Material :

Phosphor Bronze

Color :

Natural

Withdrawl Force-Min :

.139 N

Max Voltage Rating (AC) :

5V

Contact Finish :

Gold

Number of Positions :

184

Circuit Application :

Signal

Mount :

Through Hole

Contact Resistance :

30mOhm

Termination :

Solder, Staggered

Reliability :

COMMERCIAL

Feature :

Board Lock

Durability :

100 Cycles

Pbfree Code :

yes

Contact Style :

BELLOWED TYPE

Termination Post Length :

3.56mm

Number Of PCB Rows :

4

Address Bus Width :

64B

Orientation :

Vertical

Card Thickness :

0.062 1.57mm

Filter Feature :

No

Weight :

21.627g

Gender :

FEMALE

IEC Conformance :

No

Lead Length :

3.556mm

PCB Thickness :

1.5748mm
