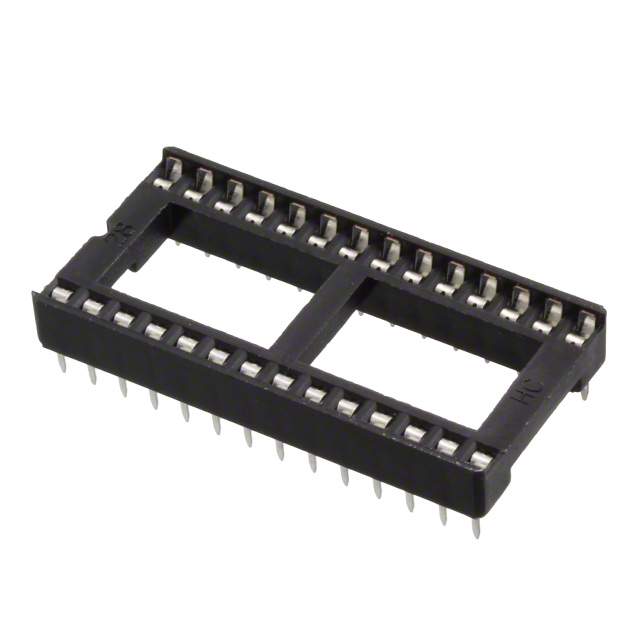

1-2199299-2
Or copy the link below:
- Mfr.Part #
- 1-2199299-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 28P,DIP SKT,600 CL,LDR,PB FREE
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- IC Sockets
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Lead Free
- ELV :
- Compliant
- Number of Rows :
- 2
- Contact Finish - Mating :
- Tin
- Row Spacing :
- 15.24 mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Resistance :
- 20mOhm
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Termination Post Length :
- 0.118 3.00mm
- Number of Positions or Pins (Grid) :
- 28 (2 x 14)
- Pitch - Post :
- 0.100 2.54mm
- Lead Length :
- 2.9972mm
- Connector Type :
- Pin
- Material Flammability Rating :
- UL94 V-0
- HTS Code :
- 8536.69.40.40
- Series :
- Diplomate DL
- REACH SVHC :
- No SVHC
- Insulation Resistance :
- 1GOhm
- JESD-609 Code :
- e3
- Number of Positions :
- 28
- Operating Temperature :
- -40°C~105°C
- Contact Finish Thickness - Post :
- 60.0μin 1.52μm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Flammability Rating :
- UL94 V-0
- Feature :
- Open Frame
- Contact Material :
- Bronze
- Termination :
- Solder
- Gender :
- FEMALE
- Contact Current Rating :
- 1A
- Packaging :
- Bulk
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Current Rating :
- 1A
- Factory Lead Time :
- 12 Weeks
- Color :
- Black
- Circuit Application :
- Signal
- Type :
- DIP, 0.6 (15.24mm) Row Spacing
- Plating Thickness :
- 1.524μm
- ECCN Code :
- EAR99
- Contact Material - Mating :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 60.0μin 1.52μm
- Published :
- 2011
- Mounting Type :
- Through Hole
- Contact Material - Post :
- Nickel
- Datasheets
- 1-2199299-2
1-2199299-2 datasheet pdf and Sockets for ICs, Transistors product details from TE Connectivity AMP Connectors stock available at Xinshop
