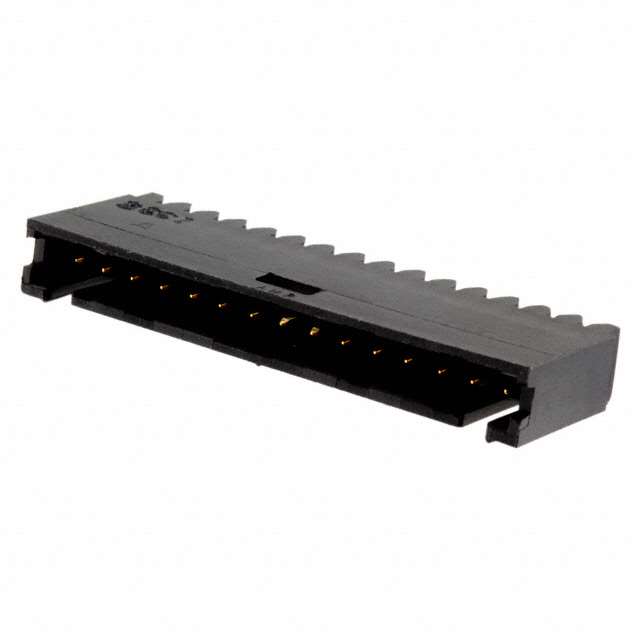

1-102202-2
Or copy the link below:
- Mfr.Part #
- 1-102202-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 15POS 2.54MM
- Stock
- 41,558
- In Stock ：
- 41,558
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Depth :
- 5.82mm
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- Length :
- 41.15mm
- Overall Contact Length :
- 0.589 14.96mm
- Number of Rows :
- 1
- Number of Conductors :
- ONE
- JESD-609 Code :
- e0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Shrouding :
- Shrouded - 4 Wall
- HTS Code :
- 8536.69.40.40
- Dielectric Withstanding Voltage :
- 750VAC V
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Insulation Resistance :
- 5GOhm
- Number of Positions :
- 15
- Contact Type :
- Male Pin
- UL Flammability Code :
- 94V-0
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 3A
- Contact Finish - Post :
- Tin-Lead
- MIL Conformance :
- No
- PCB Thickness :
- 1.397mm
- Contact Length - Post :
- 0.130 3.30mm
- Polarization Key :
- POLARIZED HOUSING
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Insulation Height :
- 0.549 13.94mm
- Approval Agency :
- CSA
- DIN Conformance :
- No
- Mating Post Length :
- 6.1mm
- Contact Shape :
- Square
- Number Of PCB Rows :
- 1
- Pitch - Mating :
- 0.100 2.54mm
- High Speed Serial Data Connector :
- No
- Contact Material :
- Brass
- Pbfree Code :
- No
- Series :
- AMPMODU Mod II
- PCB Contact Pattern :
- RECTANGULAR
- Contact Length - Mating :
- 0.240 6.10mm
- Style :
- Board to Board or Cable
- Packaging :
- Tube
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Thermoplastic
- Contact Gender :
- Male
- Published :
- 2006
- Orientation :
- Vertical
- Fastening Type :
- Push-Pull
- Shrouded End Dimension :
- 1.778 mm
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Lead Length :
- 3.302mm
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Row Spacing :
- 2.54 mm
- Number of Positions Loaded :
- All
- ELV :
- Non-Compliant
- Rated Current (Signal) :
- 3A
- Operating Temperature :
- -65°C~105°C
- Mount :
- Through Hole
- Datasheets
- 1-102202-2
1-102202-2 Documents
AMPMODU Mod II Series 1-Row Header Solder Brass Tube Through Hole Gold Thermoplastic 15-Position Board to Board or Cable 0.549 13.94mm Height
1-102202-2 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the AMPMODU Mod II Series of products.Through Hole mounts the part.There is no operating temperature for the device.
1-102202-2 Features
AMPMODU Mod II series
1-102202-2 Applications
There are a lot of TE Connectivity AMP Connectors
1-102202-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
