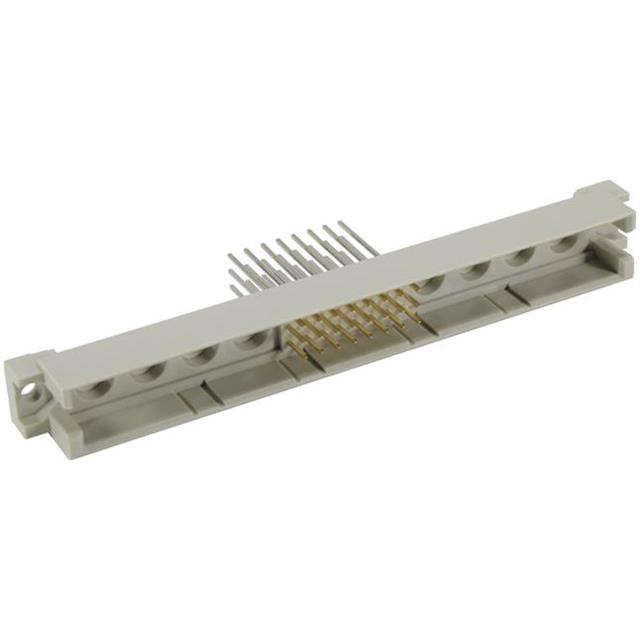

09731246902

Manufacturer :

HARTING

Product Category :

DIN 41612

Reference Standard :

UL, CSA

IEC Conformance :

No

Body Breadth :

0.437 inch

Contact Finish - Mating :

AU

Insertion Force-Max :

.9452 N

Filter Feature :

No

Contact Resistance :

15mOhm

Termination Type :

Solder

Mounting Type :

BOARD AND PANEL

Name of Rows Loaded :

A,B,C

Polarization Key :

ENDS

Mating Contact Pitch :

0.1 inch

Body Length or Diameter :

3.74 inch

Mounting Style :

Straight

Reliability :

COMMERCIAL

Mating Contact Row Spacing :

0.1 inch

PCB Contact Row Spacing :

2.54 mm

Number Of PCB Rows :

3

Operating Temperature (Min) :

-65°C

Option :

GENERAL PURPOSE

PCB Contact Pattern :

RECTANGULAR

Durability :

400 Cycles

Total Number of Contacts :

32

Contact Material :

COPPER ALLOY

Rated Current (Signal) :

2A

Body Depth :

0.457 inch

Contact Gender :

Male

Mixed Contacts :

yes

Number of Rows :

3

DIN Conformance :

yes

Additional Feature :

STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2

Dielectric Withstanding Voltage :

1000VAC V

Connector Type :

BOARD EURO CONNECTOR

Reach Compliance Code :

Compliant

Contact Style :

SQ PIN-SKT

Insulation Material :

GLASS FILLED THERMOPLASTIC

Terminal Pitch :

2.54mm

Length - Termination :

0.098 inch

MIL Conformance :

No

Insulation Resistance :

1000000000000Ohm

Operating Temperature (Max) :

125°C

Contact Finish Termination :

TIN OVER NICKEL

Body/Shell Style :

Receptacle

Withdrawl Force-Min :

.9452 N
