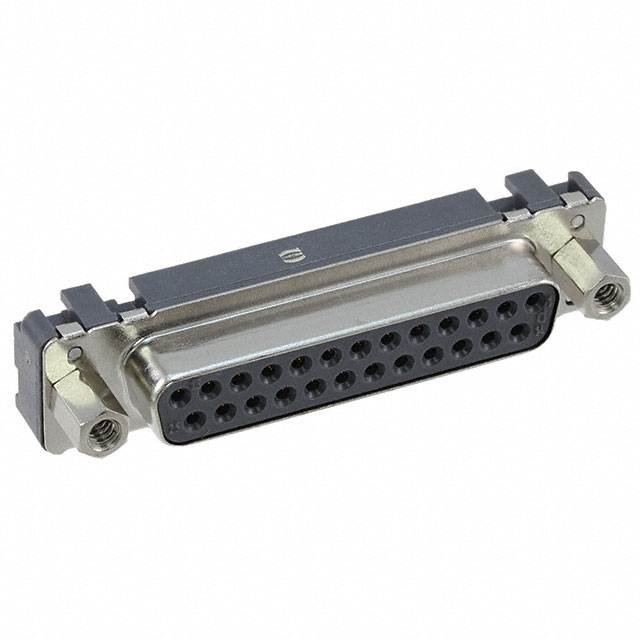

09663556513

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Body/Shell Style :

PLUG

Connector Style :

D-Sub

Factory Lead Time :

7 Weeks

Contact Resistance :

10MOhm

HTS Code :

8536.69.40.30

Mating Contact Pitch :

0.109 inch

Shell Material, Finish :

Steel

Number Of PCB Rows :

2

Mounting Type :

Through Hole

Total Number of Contacts :

25

Termination :

Solder

Number of Rows :

2

Housing Material :

Glass

Filter Feature :

No

Option :

GENERAL PURPOSE

Connector Type :

Receptacle, Female Sockets

MIL Conformance :

No

UL Flammability Code :

94V-0

Contact Material :

COPPER ALLOY

PCB Contact Pattern :

STAGGERED

Flange Feature :

Mating Side, Female Screwlock (4-40)

Reference Standard :

UL

Shell Finish :

Tin

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Form :

Stamped

Pbfree Code :

yes

Contact Finish :

Gold

Empty Shell :

No

Mixed Contacts :

No

Dielectric Withstanding Voltage :

1000VAC V

DIN Conformance :

yes

Insulation Resistance :

10000000000Ohm

Shell Size, Connector Layout :

3 DB B

Insertion Force-Max :

3.336 N

Packaging :

Bulk

Operating Temperature :

-55°C~125°C

Feature :

Board Lock

Contact Type :

Signal

Length - Termination :

0.114 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Through Hole

ECCN Code :

EAR99

Current Rating (Amps) :

6.5A

Number of Positions :

25

Material Flammability Rating :

UL94 V-0
