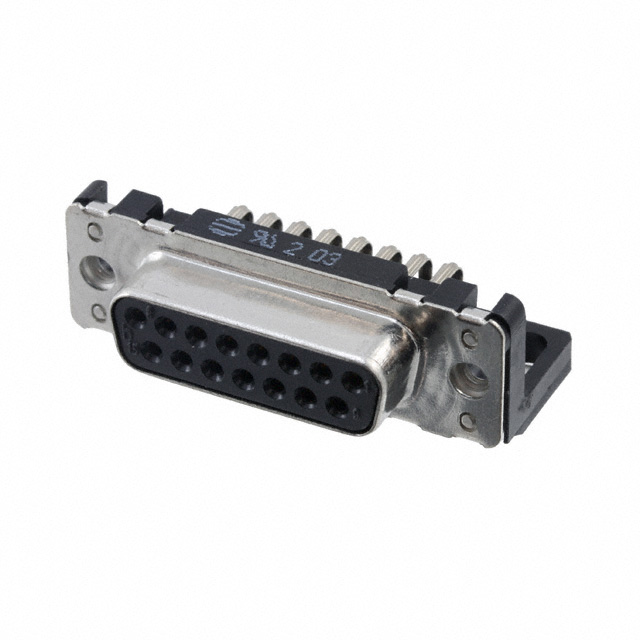

09662526612

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Empty Shell :

No

Mount :

Through Hole

Current Rating (Amps) :

6.5A

UL Flammability Code :

94V-0

Pbfree Code :

yes

Contact Material :

COPPER ALLOY

Shell Size, Connector Layout :

2 DA A

Gender :

Receptacle

DIN Conformance :

yes

Backset Spacing :

0.409 (10.40mm)

Working Voltage :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body/Shell Style :

PLUG

Mounting Type :

Through Hole, Right Angle

Voltage - Rated DC :

250V

Shell Finish :

Tin

Width :

13.6mm

Contact Plating :

Gold

Feature :

Board Lock

Operating Temperature :

-55°C~125°C

Body Depth :

0.583 inch

Factory Lead Time :

4 Weeks

Body Material :

Metal

Height :

12.5mm

Number of Rows :

2

Option :

GENERAL PURPOSE

MIL Conformance :

No

Withdrawl Force-Min :

3.336 N

Body Plating :

Tin

Pitch :

2.54mm

Mixed Contacts :

No

Termination :

Solder

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Number of Terminations :

15

PCB Contact Pattern :

STAGGERED

Packaging :

Bulk

Connector Type :

Receptacle, Female Sockets

Material Flammability Rating :

UL94 V-0

Test Voltage :

1kV

REACH SVHC :

No SVHC

HTS Code :

8536.69.40.30

IEC Conformance :

yes

Total Number of Contacts :

15

Shell Material, Finish :

Steel

Reference Standard :

UL

Current Rating :

6A

Flange Feature :

Housing/Shell (4-40)

Number of Ports :

1

Housing Material :

Polybutylene

Contact Finish - Mating :

NOT SPECIFIED

Orientation :

RIGHT ANGLE

Connector Style :

D-Sub

ECCN Code :

EAR99

Contact Form :

Stamped

Filter Feature :

No

Length :

39.5mm

RoHS Status :

ROHS3 Compliant

Contact Type :

Signal

Insertion Force-Max :

3.336 N

Number Of PCB Rows :

2
