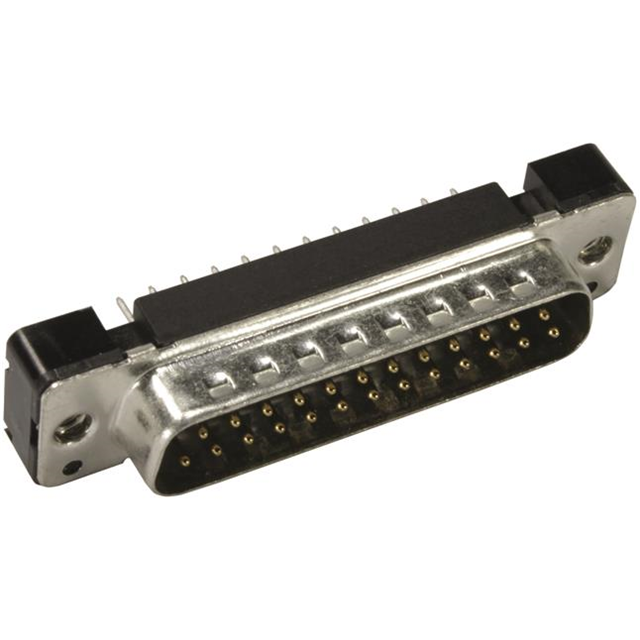

09662216702

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

MIL Conformance :

No

Flange Feature :

Housing/Shell (4-40)

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

HTS Code :

8536.69.40.30

Depth :

12.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

0.508 inch

Shell Finish :

Tin

Insertion Force-Max :

3.336 N

Number of Ports :

1

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Contact Form :

Machined

DIN Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Filter Feature :

No

Mount :

Through Hole

Contact Material :

COPPER ALLOY

Current Rating (Amps) :

7.5A

Feature :

Grounding Indents

Option :

GENERAL PURPOSE

Number of Rows :

2

ECCN Code :

EAR99

UL Flammability Code :

94V-0

PCB Contact Pattern :

STAGGERED

Contact Type :

Signal

Connector Style :

D-Sub

Mixed Contacts :

No

Empty Shell :

No

Housing Material :

Polybutylene

Pbfree Code :

yes

Shell Material, Finish :

Steel

Mounting Type :

Through Hole

Number Of PCB Rows :

2

Material Flammability Rating :

UL94 V-0

Withdrawl Force-Min :

3.336 N

Reference Standard :

UL

Connector Type :

Plug, Male Pins

Number of Positions :

15

Total Number of Contacts :

15

Orientation :

Straight

IEC Conformance :

yes

Length :

39.2mm

Shell Size, Connector Layout :

2 DA A

Factory Lead Time :

9 Weeks

Termination :

Solder

Body/Shell Style :

Receptacle

Operating Temperature :

-55°C~125°C
