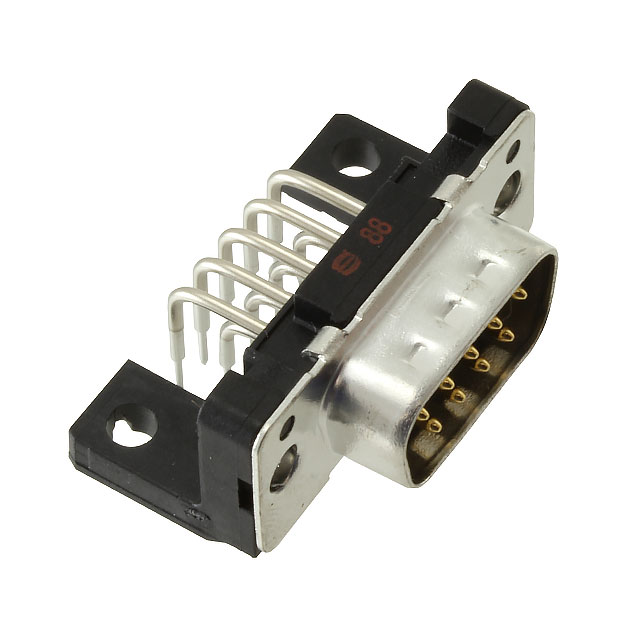

09661226801

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Withdrawl Force-Min :

3.336 N

Contact Material :

COPPER ALLOY

Connector Style :

D-Sub

Contact Finish - Mating :

NOT SPECIFIED

Contact Form :

Machined

Connector Type :

Plug, Male Pins

Dielectric Withstanding Voltage :

1000VAC V

Mount :

Through Hole

Insulation Resistance :

10000000000Ohm

Termination :

Solder

IEC Conformance :

yes

Insertion Force-Max :

3.336 N

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole, Right Angle

Body/Shell Style :

Receptacle

Housing Material :

PBT

Empty Shell :

No

Operating Temperature :

-55°C~125°C

Flange Feature :

Housing/Shell (M3)

Filter Feature :

No

Option :

GENERAL PURPOSE

Shell Finish :

Tin

Shell Size, Connector Layout :

1 DE E

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

15 Weeks

Gender :

Male

Shell Material, Finish :

Steel

Backset Spacing :

0.409 (10.40mm)

Pbfree Code :

yes

MIL Conformance :

No

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Length - Termination :

0.114 inch

Feature :

Grounding Indents

Contact Resistance :

10MOhm

Body Depth :

0.583 inch

Number of Positions :

9

Packaging :

Bulk

DIN Conformance :

yes

Mixed Contacts :

No

Number of Rows :

2

Mating Contact Pitch :

0.108 inch

Body Breadth :

0.508 inch

PCB Contact Pattern :

STAGGERED

Current Rating (Amps) :

7.5A

Number Of PCB Rows :

2

Contact Type :

Signal

Total Number of Contacts :

9

Reference Standard :

UL
