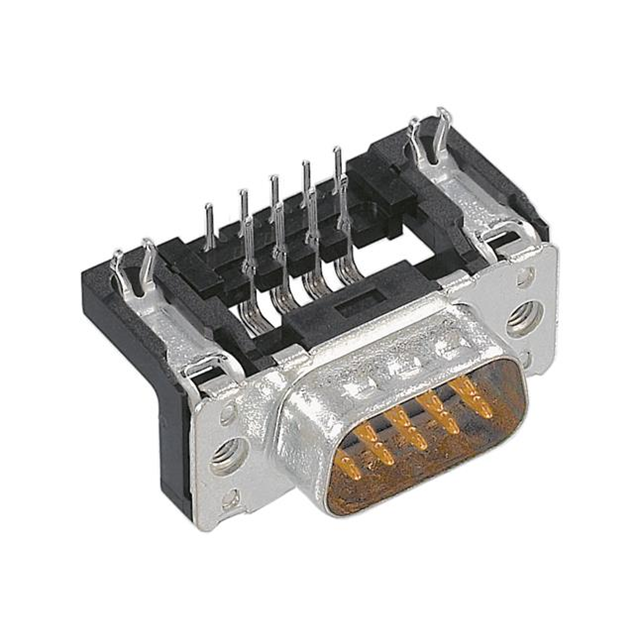

09652636812

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Connector Style :

D-Sub

Contact Type :

Signal

Current Rating (Amps) :

6.5A

Contact Form :

Stamped

Contact Material :

COPPER ALLOY

Factory Lead Time :

7 Weeks

Empty Shell :

No

Termination :

Solder

IEC Conformance :

yes

MIL Conformance :

No

Option :

GENERAL PURPOSE

Operating Temperature :

-55°C~125°C

DIN Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Number of Rows :

2

Flange Feature :

Housing/Shell (4-40)

Feature :

Board Lock, Grounding Indents

Total Number of Contacts :

15

Shell Size, Connector Layout :

2 DA A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Through Hole

Housing Material :

PBT

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Backset Spacing :

0.409 (10.40mm)

UL Flammability Code :

94V-0

Mounting Type :

Through Hole, Right Angle

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Shell Material, Finish :

Steel

Material Flammability Rating :

UL94 V-0

Number of Positions :

15

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Mixed Contacts :

No

Connector Type :

Plug, Male Pins
