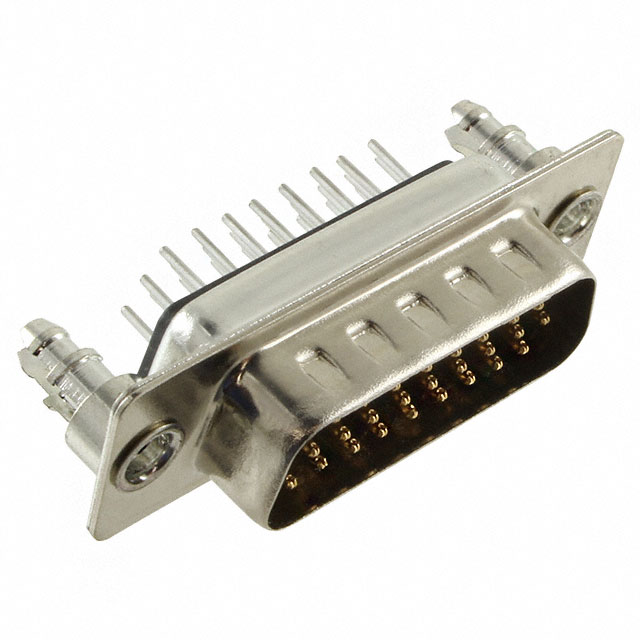

09562617712

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Mixed Contacts :

No

Empty Shell :

No

Mounting Type :

Through Hole

Contact Finish - Mating :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Pitch :

2.29mm

Shell Material, Finish :

Steel, Nickel Plated

Dielectric Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Housing Material :

Steel

Contact Material :

COPPER ALLOY

Option :

GENERAL PURPOSE

Contact Plating :

Gold

Material Flammability Rating :

UL94 V-0

Width :

10.74mm

Number of Rows :

3

UL Flammability Code :

94V-0

Contact Form :

Stamped

Mount :

Through Hole

Depth :

12.93mm

Shell Size, Connector Layout :

2 DA A High Density

Termination :

Solder

Filter Feature :

No

Total Number of Contacts :

26

Number of Ports :

1

Orientation :

Straight

Contact Type :

Signal

Pbfree Code :

yes

Operating Temperature :

-40°C~85°C

Package / Case :

Metal

Connector Style :

D-Sub, High Density

Packaging :

Tray

MIL Conformance :

No

Length :

39.5mm

IEC Conformance :

No

Current Rating :

2A

Plating :

Tin

Factory Lead Time :

9 Weeks

Connector Type :

Plug, Male Pins

Feature :

Board Lock, Grounding Indents

DIN Conformance :

No

Flange Feature :

Board Side (4-40)

Number of Positions :

26

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free
