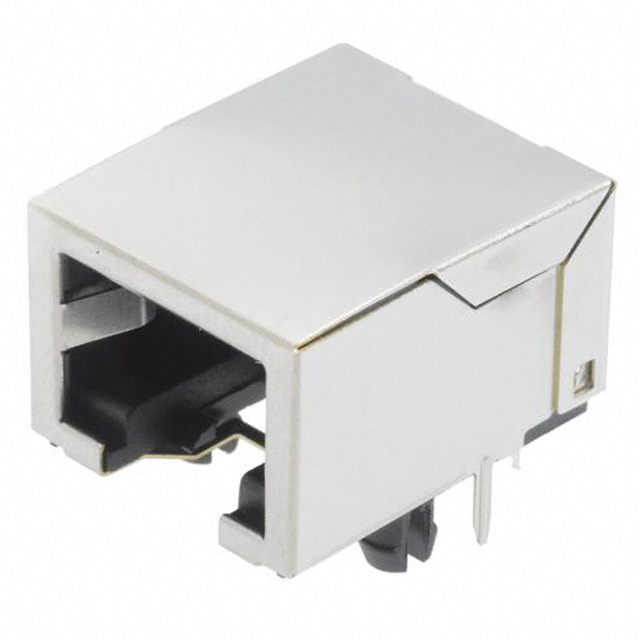

09455511102

Manufacturer :

HARTING

Product Category :

Modular Connector Jacks

Depth :

18.65mm

Color :

Grey

Housing Color :

Black

Shell Material :

COPPER ALLOY

Mount :

Through Hole

Weight :

4.036008g

Factory Lead Time :

4 Weeks

Reference Standard :

UL

Flammability Rating :

UL94 V-0

Orientation :

90° Angle (Right)

Housing Material :

Polybutylene Terephthalate (PBT)

IEC Conformance :

No

Mounting Type :

Through Hole

Packaging :

Tray

Length :

15.74mm

Connector Type :

JACK

Contact Finish :

Gold

Empty Shell :

No

Gender :

FEMALE

Pitch :

2.54mm

Number of Positions :

8

Width :

15.74mm

LED Color :

Does Not Contain LED

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Current Rating :

1.5A

Ingress Protection :

IP20

Shielding :

Shielded

Durability :

750 Cycles

Termination :

Solder

Series :

RJ Industrial®

Pbfree Code :

yes

Contact Material :

Phosphor Bronze

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Number of Ports :

1

Shell Finish :

Nickel

Ratings :

Cat5

Feature :

Board Lock

Reliability :

COMMERCIAL

Operating Temperature :

-20°C~70°C

Body Breadth :

2.953 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness :

15.0μin 0.38μm

MIL Conformance :

No

Total Number of Contacts :

10

Option :

GENERAL PURPOSE

Filter Feature :

No

Mixed Contacts :

No

Tab Direction :

Down

Voltage - Rated :

125V

PCB Contact Pattern :

STAGGERED

JESD-609 Code :

e3

Contact Style :

TELCOM, MODULAR

DIN Conformance :

No
