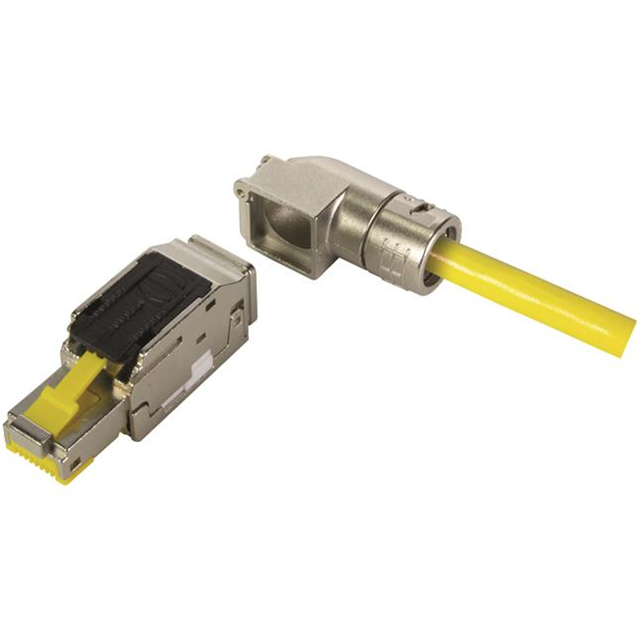

09451511571

Manufacturer :

HARTING

Product Category :

Modular Connector Plugs

Insulation Resistance :

5000 MOhms

Product :

Connectors

Shield Material :

-

Color :

Yellow

Ratings :

Cat6a

Mounting Angle :

RIGHT ANGLE

Product Status :

Active

Mounting Style :

Cable Mount

Voltage Rating :

50 VAC, 60 VDC

Current Rating (Amps) :

1.76 A

Application :

10G Base-T

Wire Gauge :

22-26 AWG

Contact Plating :

Gold

Operating Temperature Range :

- 40 C to + 85 C

Number of Contacts :

8 Contact

Contact Finish :

Gold

Termination Style :

IDC

Termination :

IDC

Connector Orientation :

RIGHT ANGLE

Minimum Operating Temperature :

- 40 C

Package :

Box

Contact Finish Thickness :

50.0µin (1.27µm)

Current Rating :

1.76 A

Number of Positions :

8 Position

Shielding :

Shielded

Configuration :

-

IP Rating :

IP20

Features :

Angled - 90°

RoHS :

Details

Maximum Operating Temperature :

+ 85 C

Ingress Protection :

IP20

Connector Type :

PLUG

Length :

2.280 (57.90mm)

Contact Material :

COPPER ALLOY

LEDs :

Without LED

USOC Codes :

RJ45

Mating Cycles :

750 Cycles

Type :

Modular Connector

Gender :

Plug (Male)

Series :

RJ Industrial®

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Port Configuration :

1 x 1 (Port)

Cable Type :

Round Cable, Solid or Stranded Wires

Housing Material :

Zinc Die Cast
