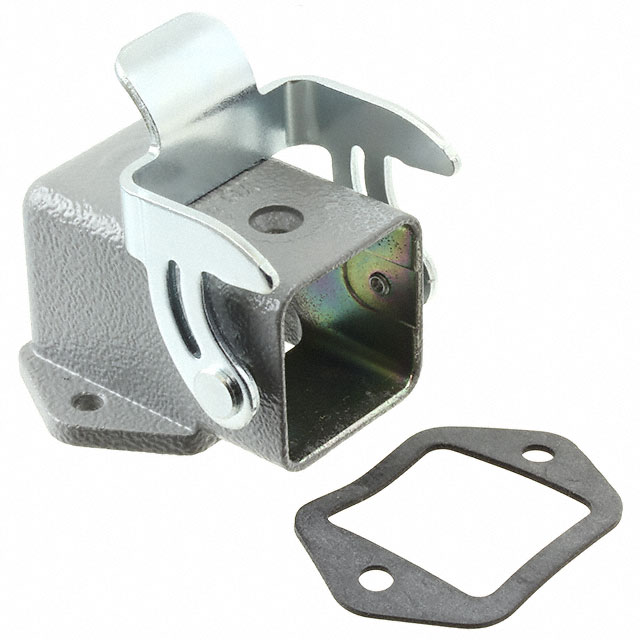

    Images are for reference only.

    Delivery：

    Payment：

    09200030801

    Share

    Or copy the link below:

    Mfr.Part #
    09200030801
    Manufacturer
    HARTING
    Package / Case
    Datasheet
    Download
    Description
    CONN BASE SIDE ENTRY SZ3A
    Stock
    17
    In Stock ：
    17

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    HARTING
    Product Category :
    Heavy Duty Connector Housings, Hoods, Bases
    Pbfree Code :
    yes
    Gender :
    FEMALE
    Option :
    GENERAL PURPOSE
    Factory Lead Time :
    5 Weeks
    Current Rating :
    3A
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Ingress Protection :
    IP44
    Packaging :
    Bulk
    Depth :
    40mm
    Style :
    Side Entry
    MIL Conformance :
    No
    Contact Gender :
    FEMALE
    RoHS Status :
    ROHS3 Compliant
    Termination :
    CABLE
    Orientation :
    Right Angle, Straight
    Housing Material :
    Zinc, Die Cast
    Material :
    Metal
    Lead Free :
    Lead Free
    REACH SVHC :
    No SVHC
    Series :
    Han® A
    Ratings :
    IP44, IP65
    Operating Temperature :
    -40°C~125°C
    Lock Location :
    Locking Clip (1) on Base Bottom
    DIN Conformance :
    No
    Contact Finish - Mating :
    NOT SPECIFIED
    Height :
    27.0002mm
    Connector Type :
    Base - Panel Mount 90°
    Number of Positions :
    4
    Housing Finish :
    Powder Coated
    IEC Conformance :
    No
    Size / Dimension :
    1.102Lx1.575W x 1.063 H 28.00mmx40.00mmx27.00mm
    Introducing Heavy Duty Connector Housings, Hoods, Bases HARTING 09200030801 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-40°C~125°C, 09200030801 pinout, 09200030801 datasheet PDF, 09200030801 amp .Beyond Heavy Duty Connector Housings, Hoods, Bases HARTING 09200030801 ,we also offer 19200031640, 09120080327, 10422500, Our vast inventory has you covered. Contact us now for immediate solutions.

    HARTING 09200030801


    5 Weeks Bulk Han® A Base - Panel Mount 90° Zinc, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C

    09200030801 Overview


    Packaging for this item is Base - Panel Mount 90°.To package the product, a Bulk case is used.The product is a member of the Han® A Series.It operates at an operating temperature of -40°C~125°C.

    09200030801 Features


    Han® A series


    09200030801 Applications


    There are a lot of HARTING
    09200030801 Heavy Duty Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
